Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Monitor "Diagnostic Trouble Codes (DTC)" with GDS/KDS.
 Fig 1

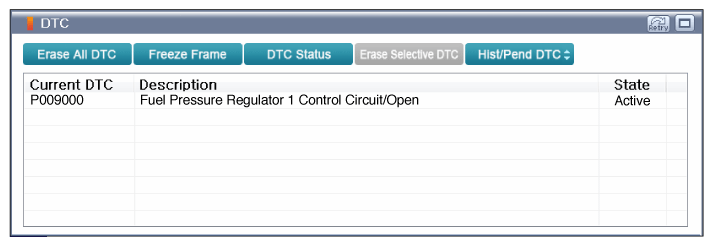

Fig 1: Screen Display - DTC Description
G12325112Courtesy of KIA MOTORS AMERICA, INC.
Active Fault
History/Pending Fault
