Signal Waveform & Data

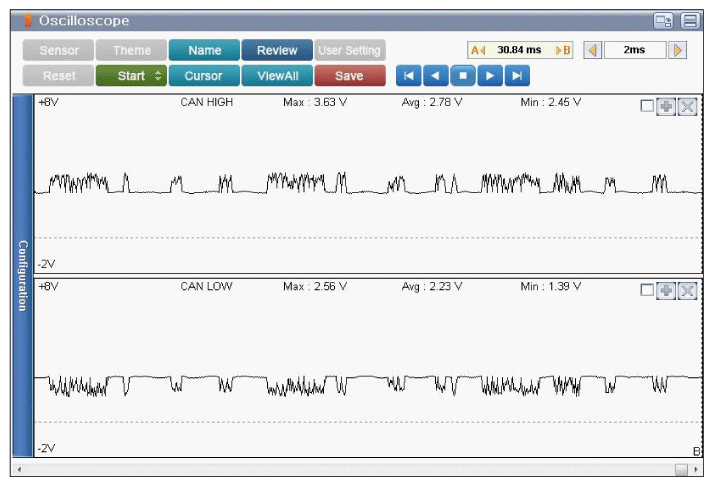

Fig 1: Screen Display - C-CAN Low & High Signal Waveform
G12137669Courtesy of KIA MOTORS AMERICA, INC.

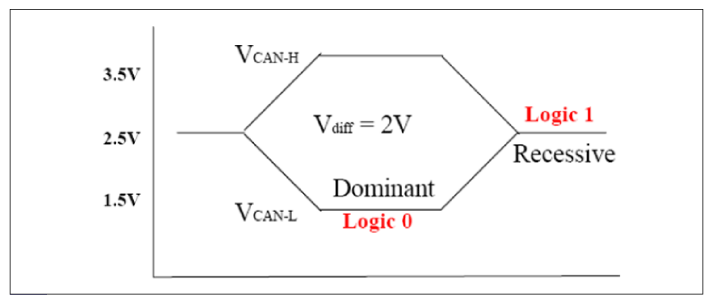

Fig 2: C-CAN Bus Voltage Level (High Speed CAN)
G12137670Courtesy of KIA MOTORS AMERICA, INC.
