Components And Components Location: Components

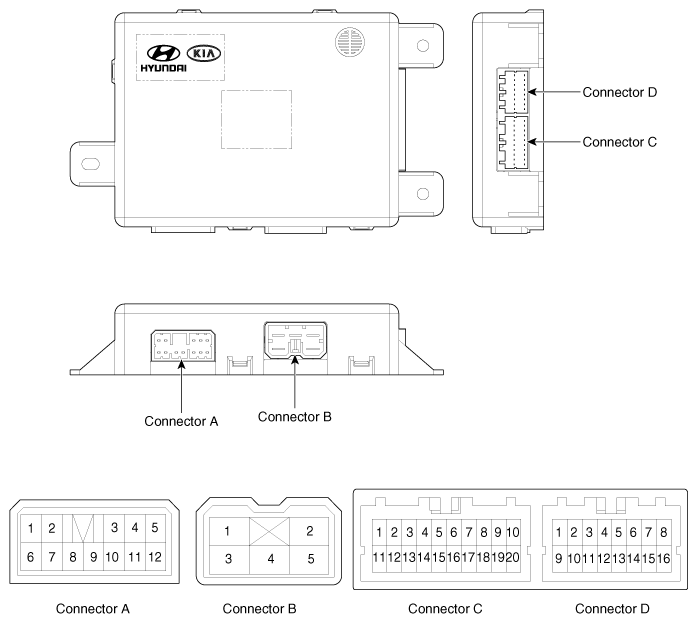

Fig 1: Memory Power Seat Unit Connector End View
G12143225Courtesy of KIA MOTORS AMERICA, INC.
No. Connecter A Connecter B Connecter C Connecter D
1 - Batt (+) - -
2 Front tilt motor (Up) GND - Seat rear height sensor
3 Rear height motor (Up) Batt (+) Slide switch signal (Forward) -
4 Reclining motor (Forward) - Reclining switch signal (Forward) Body CAN (High)
5 Slide motor (Forward) GND Front tilt switch signal (Up) Body CAN (Low)
6 - - Rear height switch signal (Up) -
7 Front tilt motor (Down) Slide sensor IGN1
8 - Reclining sensor Batt (+)
9 - Front tilt sensor GND
10 Rear height motor (Down) Seat position sensor power -
11 Reclining motor (Backward) - IMS Switch 1
12 Slide motor (Backward) - IMS Switch 2
13 - Slide switch signal (Backward) -
14 Reclining switch signal (Backward) SET Switch
15 Front tilt switch signal (Down) -
16 Rear height switch signal (Down) -
17 - -
18 -
19 -
20 -
