Repair Procedures: Removal
- Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

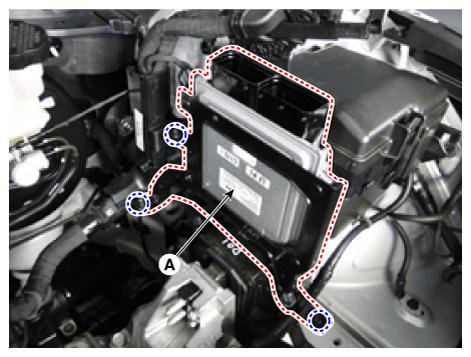

- Remove the TCM (A) by loosening the bolts after disconnecting the TCM connector.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
