Circuit Diagram

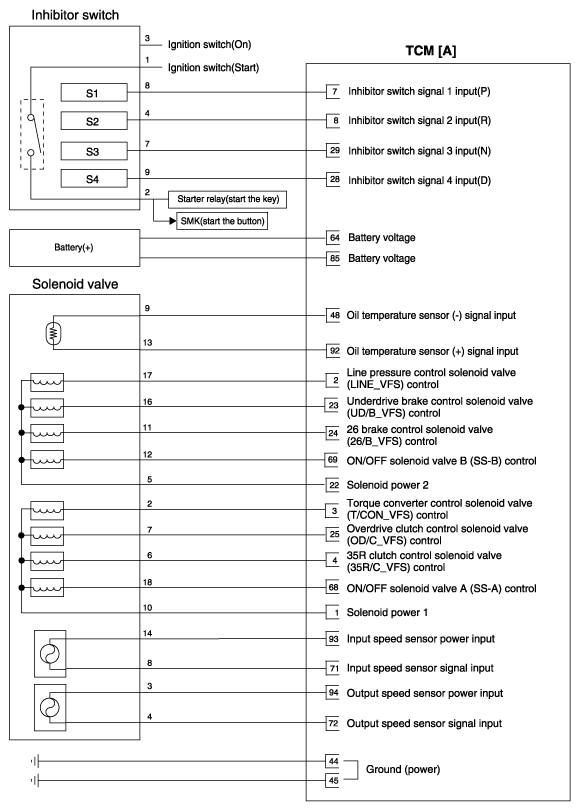

Fig 1: TCM Circuit (1 Of 2)
G12148165Courtesy of KIA MOTORS AMERICA, INC.

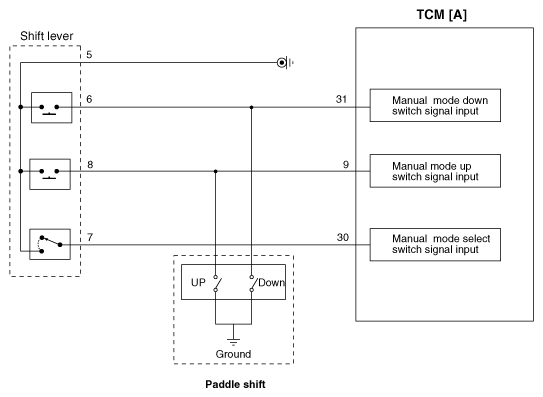

Fig 2: TCM Circuit (2 Of 2)
G12148166Courtesy of KIA MOTORS AMERICA, INC.
