Monitor DTC Status

  1. Connect KDS to Data Link Connector (DLC).
  2. Ignition "ON".
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

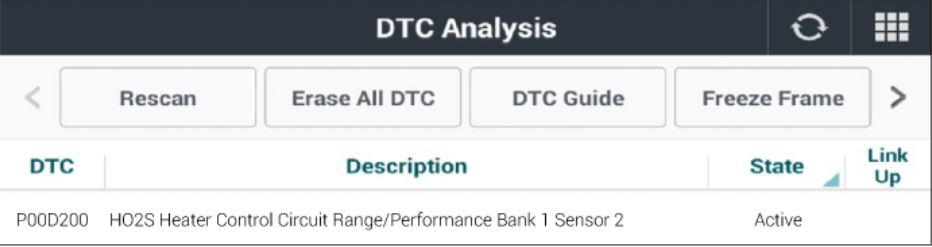

    Fig 1: Scantool Display - DTC Analysis
    G00580532Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    - Go to "Monitor KDS Data" procedurs below.

    NO

    - Go to "VERIFICATION OF REPAIR " procedure.
