Description And Operation: Description
WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

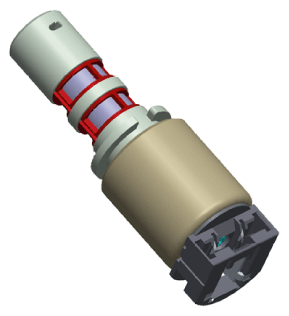

- Overdrive clutch control solenoid valve is a Variable Force Solenoid (VFS) type.
- When TCM supplies variable current to solenoid valve, hydraulic pressure of underdrive brake is controlled by solenoid valve.
OVERDRIVE CLUTCH CONTROL SOLENOID VALVE OPERATION
| OD/C_VF | |
|---|---|
| N/H | |
| N, P | |
| 1 | Δ |
| 2 | • |
| 3 | • |
| 4 | |
| 5 | |
| 6 | |
| R |
•: Connected status
Δ: Connected with vehicle speed above 8km/h (5mph)
