Repair Procedures: Installation

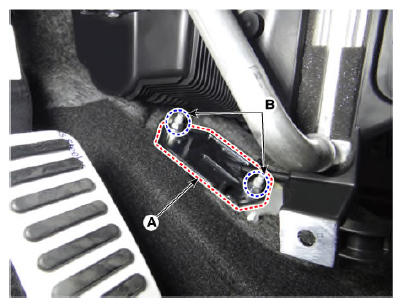

  1. Install the shift cable retainer (A) by tightening nuts (B).

    Tightening torque:

    11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)

    G12576824Courtesy of KIA MOTORS AMERICA, INC.

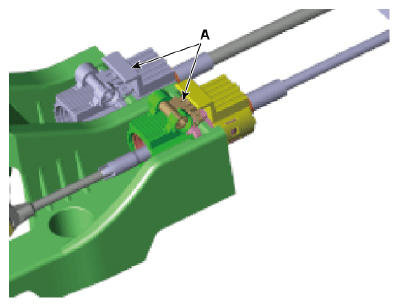

  2. Install the cable sockets (A).
    G12576825Courtesy of KIA MOTORS AMERICA, INC.

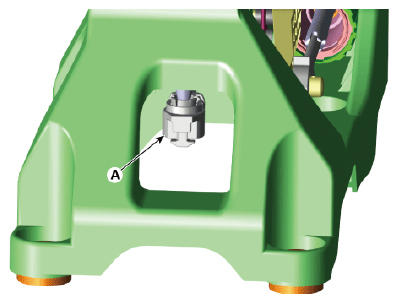

  3. Install the shift cable (A).

    [A Type]

    G12576826Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Matters that require attention when installing the shift cable.

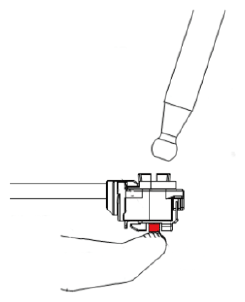

    1. Push the cable end to shift lever rod with supporting with finger.
      G12576827Courtesy of KIA MOTORS AMERICA, INC.
    2. With holding side of cable end eye or cable rod, push the shift lever rod into shift cable eye end until hearing clicking sound.
      G12576828Courtesy of KIA MOTORS AMERICA, INC.
    3. After assembling, make sure that this part is extruded.
      G12576829Courtesy of KIA MOTORS AMERICA, INC.

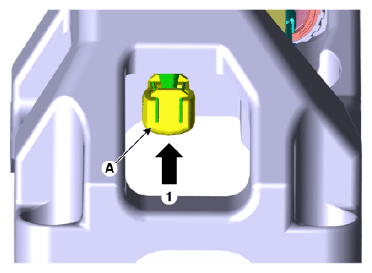

    [B Type]

    G12576830Courtesy of KIA MOTORS AMERICA, INC.

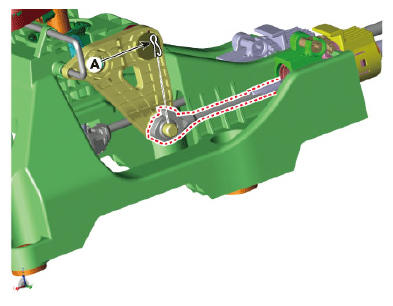

  4. Install the select cable to the lever pin and then insert the snap pin (A).
    G12576831Courtesy of KIA MOTORS AMERICA, INC.
  5. Check that the shift lever and control shaft are placed in the "4th" position and then install the 4th fixing pin (A).
    G12576832Courtesy of KIA MOTORS AMERICA, INC.
  6. Install the control cable.

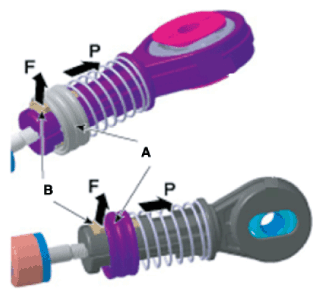

    1. After pulling the holder (A) in the direction of the "P", pull the lock (B) in the direction of the "F".
      G12576833Courtesy of KIA MOTORS AMERICA, INC.

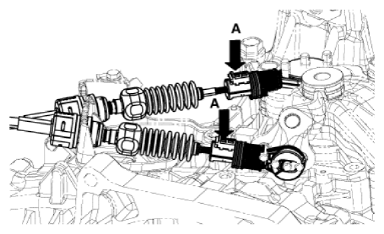

    2. Push the lock (A) after installing the control cable to the control shaft and cable bracket.
      G12576834Courtesy of KIA MOTORS AMERICA, INC.

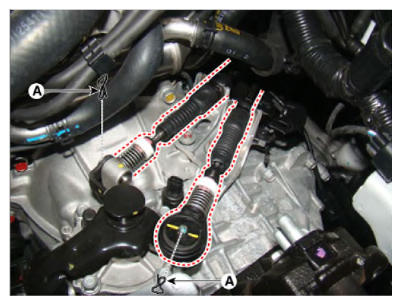

    3. Insert the snap pins (A).
      G12576835Courtesy of KIA MOTORS AMERICA, INC.
    4. Remove the 4th fixing pin (A).
      G12576836Courtesy of KIA MOTORS AMERICA, INC.
  7. Check for proper operation of control shaft lever when operated (1st, 2nd, 3rd, 4th, 5th, 6th, R gear).
  8. Install the battery and battery tray.

    (Refer to Engine Electrical System - " BATTERY  ")

  9. Install the air cleaner assembly.

    (Refer to Engine Mechanical System - " AIR CLEANER  ")

  10. Install the floor console assembly.

    (Refer to Body - " FLOOR CONSOLE ASSEMBLY  ")
