Repair Procedures: Removal

Move the shift lever to 4th gear.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - " AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - " BATTERY ")

Remove the control cable.

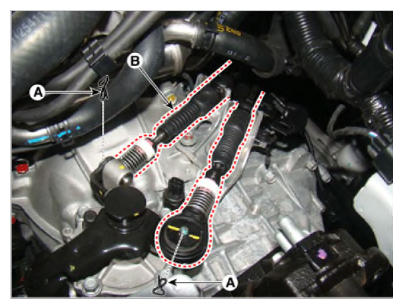

Remove the control cable from the control shaft after removing the snap pins (A).

Remove the control cable (B) from the bracket.

Courtesy of KIA MOTORS AMERICA, INC.

Remove the floor console assembly.
(Refer to Body - " FLOOR CONSOLE ASSEMBLY ")

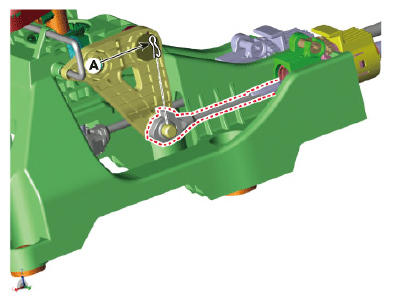

Remove the snap pin (A) and then remove the select cable from the shift lever pin.

Courtesy of KIA MOTORS AMERICA, INC.

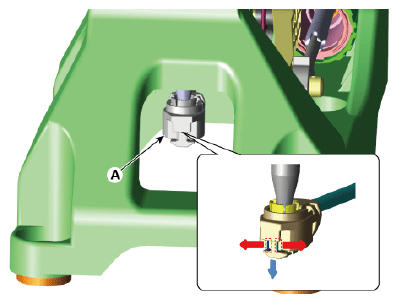

Remove the shift cable (A).
[A Type]

Courtesy of KIA MOTORS AMERICA, INC.

[B Type]

Courtesy of KIA MOTORS AMERICA, INC.

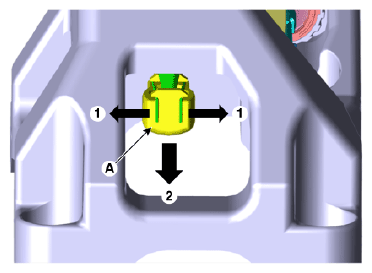

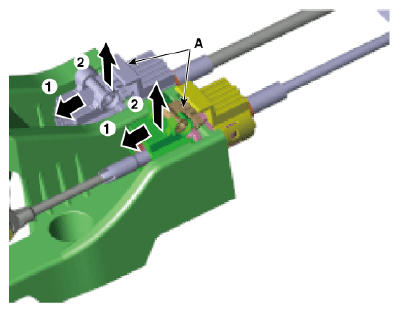

Remove the cable sockets (A) from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

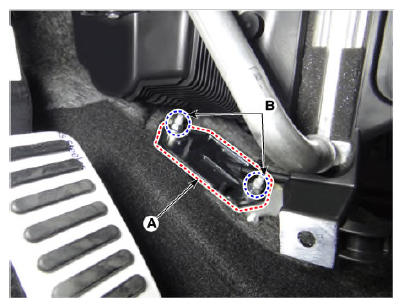

Remove the shift cable retainer (A) after loosening the nuts (B). Then, remove the shift cable by pulling it toward the vehicle interior.
