Repair Procedures: Removal
- Shift the gear to "neutral".
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - " AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - " BATTERY ")

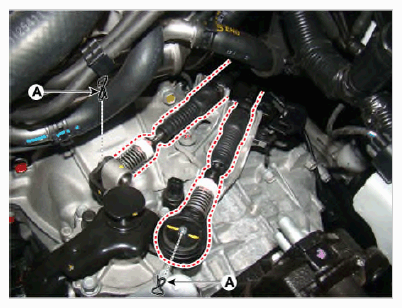

- Remove the control cable from the control shaft after remove the pins (A).

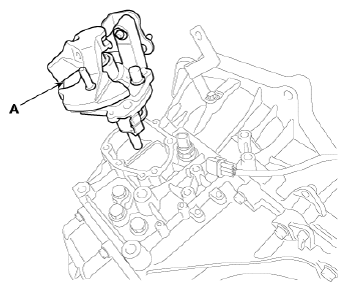

- Remove the control shaft complete (A).
Tightening torque:
19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft)
