Repair Procedures: Installation
- Install in the reverse order of removal.
NOTE:
Matters that require attention when installing the shift cable.
[A Type]
- Push the cable end to shift lever rod with supporting with finger.
 Courtesy of KIA MOTORS AMERICA, INC.
|
- With holding side of cable end eye or cable rod, push the shift lever rod into shift cable eye end until hearing clicking sound.
 Courtesy of KIA MOTORS AMERICA, INC.
|
- After assembling, make sure that this part is extruded.
 Courtesy of KIA MOTORS AMERICA, INC.
|
[B Type]

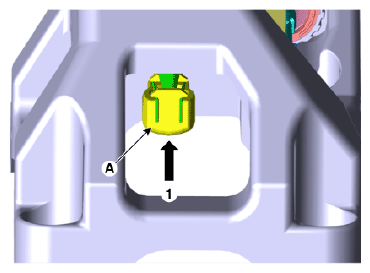

- Install the shift cable (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
