Components And Components Location: Components
WARNING: This page is about a different car, the 2017 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

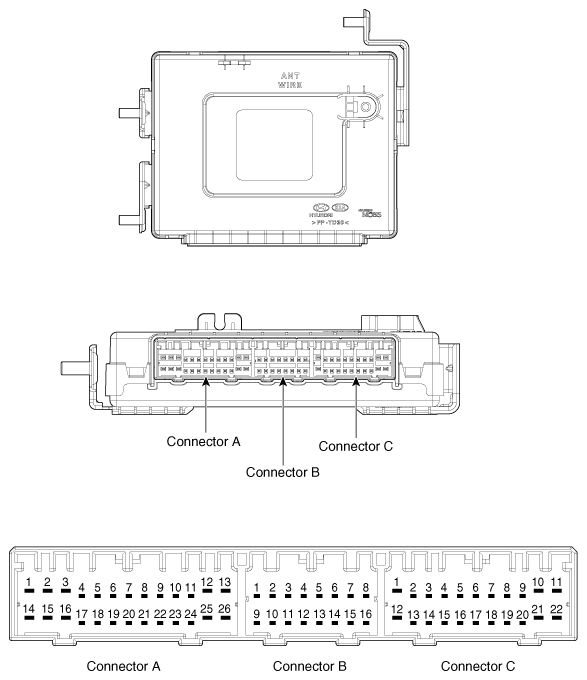

CONNECTOR PIN INFORMATION DESCRIPTION
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Rear washer motor_output | - | Multifunction switch GND |
| 2 | Front washer motor_output | Reserved1_output | Auto light sensor_input |
| 3 | Power window unlock switch_input | Crash signal_input | Brake switch_input |
| 4 | Power window lock switch_input | Chassis CAN Low | Fog lamp switch_input |
| 5 | Safety power window enable_output | Chassis CAN High | Head lamp high switch_input |
| 6 | Rear wiper relay_output | - | Multifunction light switch_input |
| 7 | Wiper low/high relay_output | Body CAN High | Front wiper switch_input |
| 8 | Key hole illumination_output | Body CAN Low | Front wiper low back up switch_input |
| 9 | Reserved4_output | Start inhibit relay_output | Front wiper washer switch_input |
| 10 | Wiper ON relay_output | LIN PAS | IGN1 |
| 11 | ALT left signal_output | - | Battery (+) |
| 12 | ATM solenoid_output | Reserved3_output | Auto light GND_output |
| 13 | Key solenoid_output | GND | Key ln switch_input |
| 14 | Battery (+) washer motor | Front sunroof open switch_input | Auto light power_output |
| 15 | Room lamp_output | Rear sunroof open switch_input | Rear defogger switch_input |
| 16 | Map lamp_output | PAS (Option)_input | RPAS Off switch_input |
| 17 | - | Key interlock switch_input | |
| 18 | - | Wiper parking state_input | |
| 19 | RPAS Buzzer_output | Rear wiper switch_input | |
| 20 | RPAS Off switch IND_output | Rear washer switch_input | |
| 21 | AST seat belt IND_output | ACC_input | |
| 22 | Front wiper INT volume switch_input | IGN2 | |
| 23 | Door unlock_output | ||
| 24 | Reserved2_output | ||
| 25 | - | ||
| 26 | GND Power |
