Signal Waveform & Data

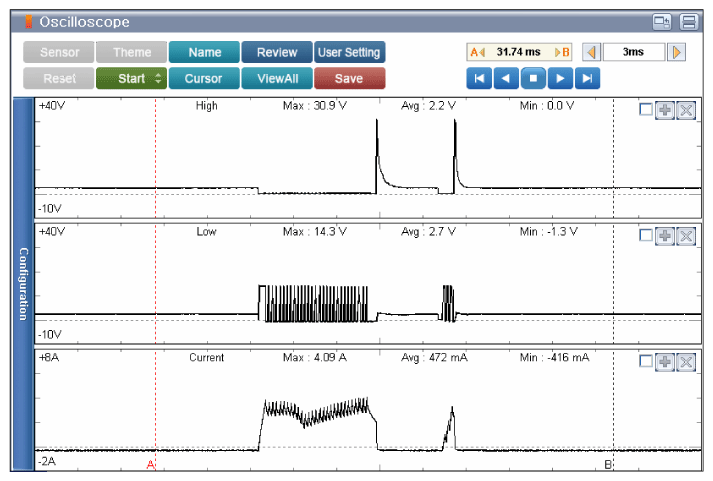

Fig 1: Scantool Display - Operating Current Of High Pressure Pump (Fuel Pressure Regulator) At Idle

Courtesy of KIA MOTORS AMERICA, INC.

* The value can be vary by few mA depends on the testing method and environment.

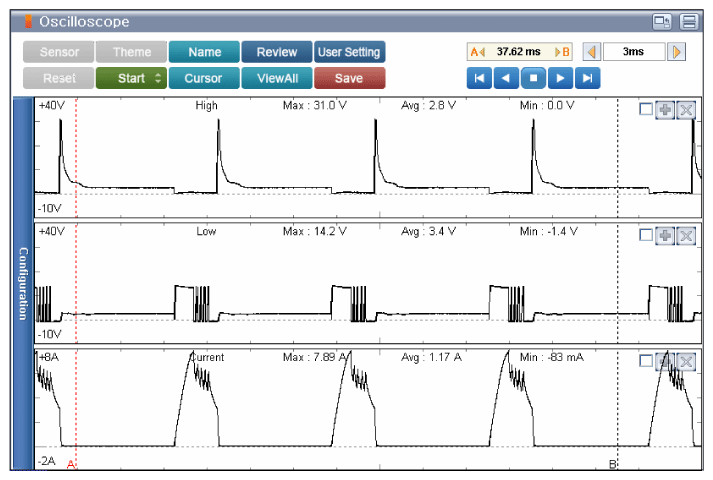

Fig 2: Scantool Display - Operating Current Of High Pressure Pump (Fuel Pressure Regulator) At Acceleration

Courtesy of KIA MOTORS AMERICA, INC.

* The value can be vary by few mA depends on the testing method and environment.
