Components And Components Location: Components
WARNING:
This page is about a different car, the 2018 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

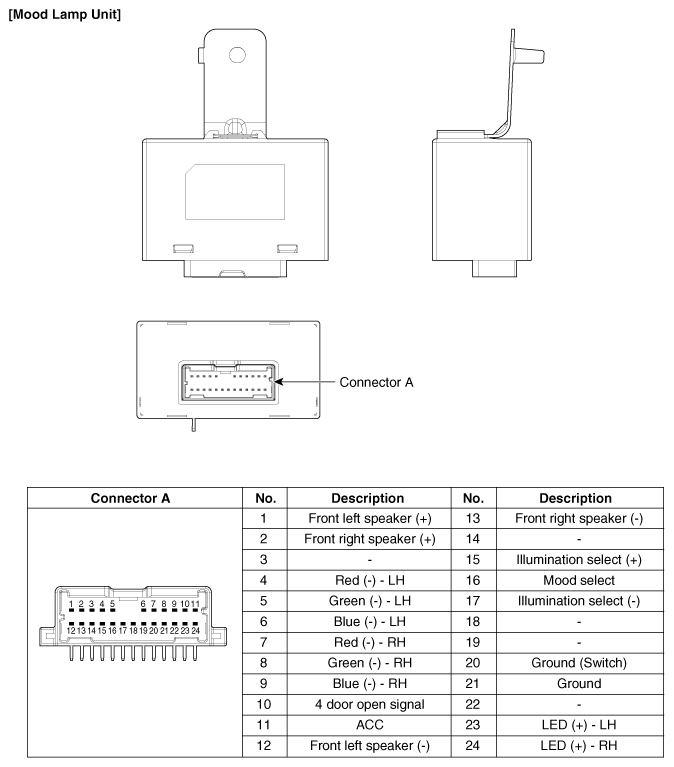

Fig 1: Mood Lamp Connector Description Chart (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

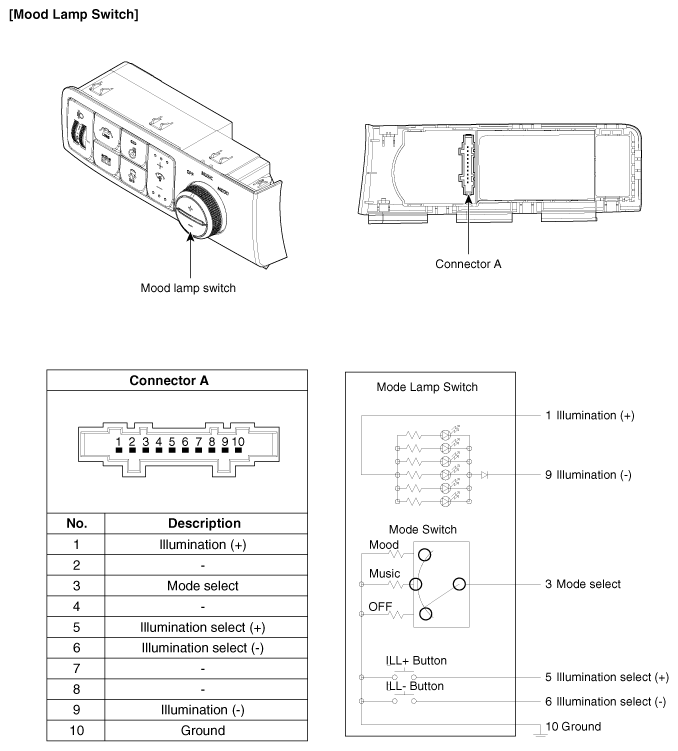

Fig 2: Mood Lamp Connector Description Chart (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
