Repair Procedures: Installation

NOTE:

The existing valve body cover gasket (A) must be replaced with new one. (Do not reuse it.)

Fig 1: Installing Valve Body Cover Gasket
Courtesy of KIA MOTORS AMERICA, INC.
Perform the procedures below after replacing the solenoid valve.
1. Refill the automatic transaxle with fluid.
  (Refer to Hydraulic System - "FLUID ")
2. Reset the automatic transaxle adaptive values using the KDS/GDS.

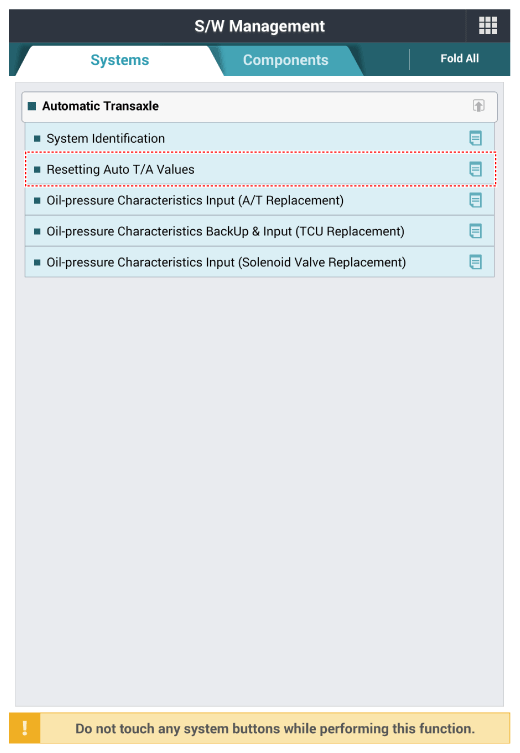

  Fig 2: Screen Display - Reset Automatic Transaxle Adaptive Values
  Courtesy of KIA MOTORS AMERICA, INC.
3. Perform the TCM adaptive values learning procedure.
  (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
4. Confirm that there is no fluid leakage on connections after repairing.
