Signal Waveform & Data

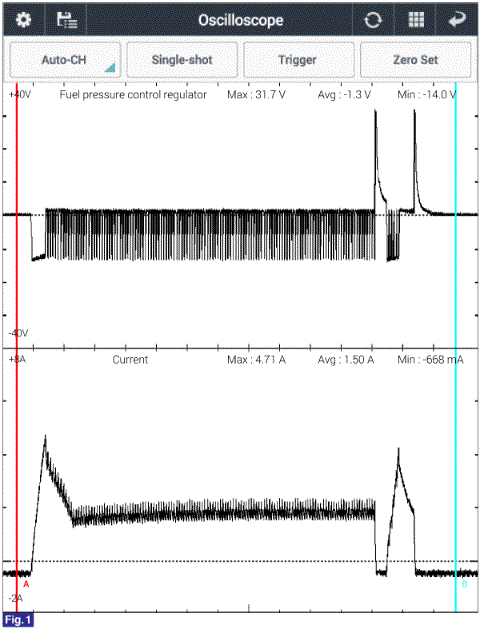

Fig 1: Scantool Display - Engine Idle After Warm Up
G00578106Courtesy of KIA MOTORS AMERICA, INC.

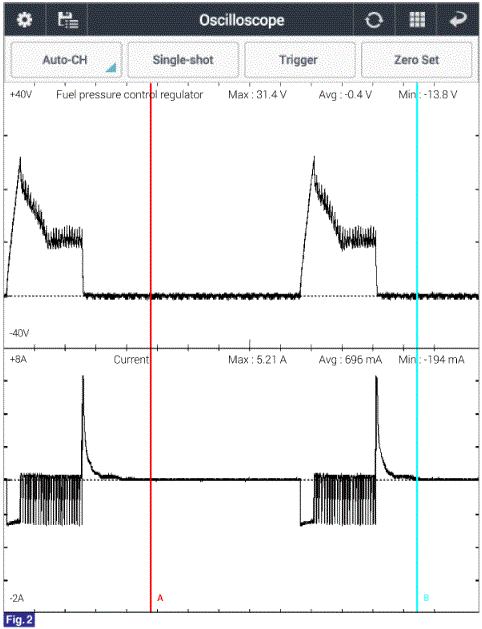

Fig 2: Scantool Display - Approx. 2000 RPM
G00578107Courtesy of KIA MOTORS AMERICA, INC.
