Battery Sensor

Disconnect the battery negative (-) cable.

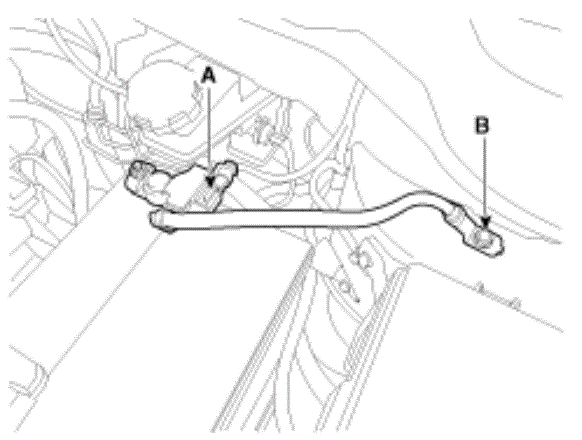

Disconnect the battery sensor connector (A).
Remove the battery negative (-) cable after removing the bolt (B).
Tightening torque

(-) terminal: 3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)

(B): 26.5 ~ 32.4 N.m (2.7 ~ 3.3 kgf.m, 19.5 ~ 23.9 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
