Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install in the reverse order of removal.
    NOTE:

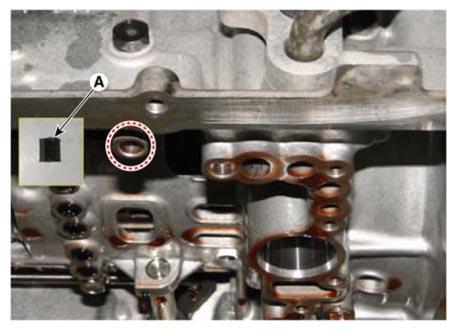

    • Check if the pipe (A) is inserted on the marked area before mounting the valve body assembly.
      G12803758Courtesy of KIA MOTORS AMERICA, INC.
  2. Refill the automatic transmission with fluid.

    (Refer to " FLUID  ")
