Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Perform the oil pressure characteristics input procedure using the KDS when replacing with a new TCM.

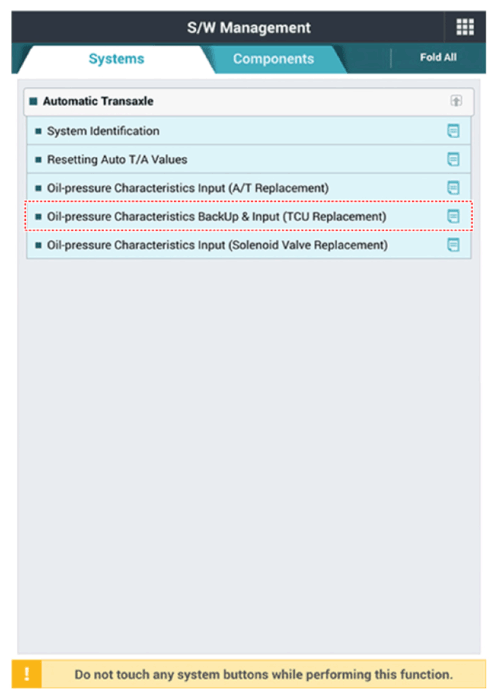

Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".

Courtesy of KIA MOTORS AMERICA, INC.

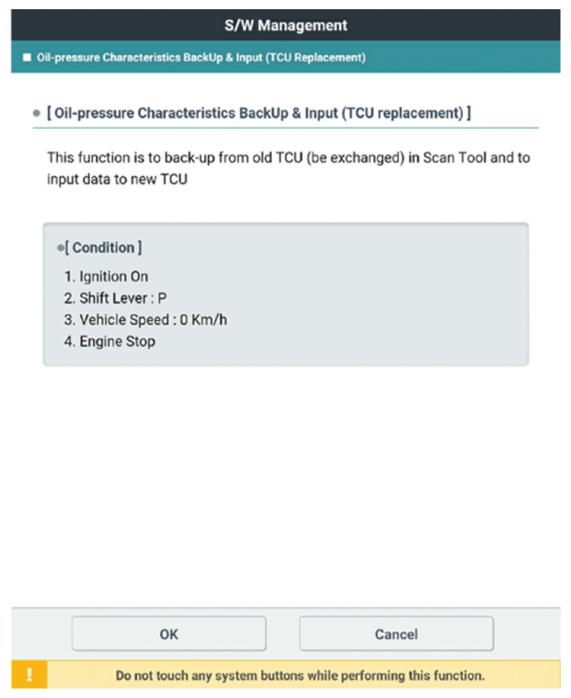

Check the condition and then click the "OK".

Courtesy of KIA MOTORS AMERICA, INC.

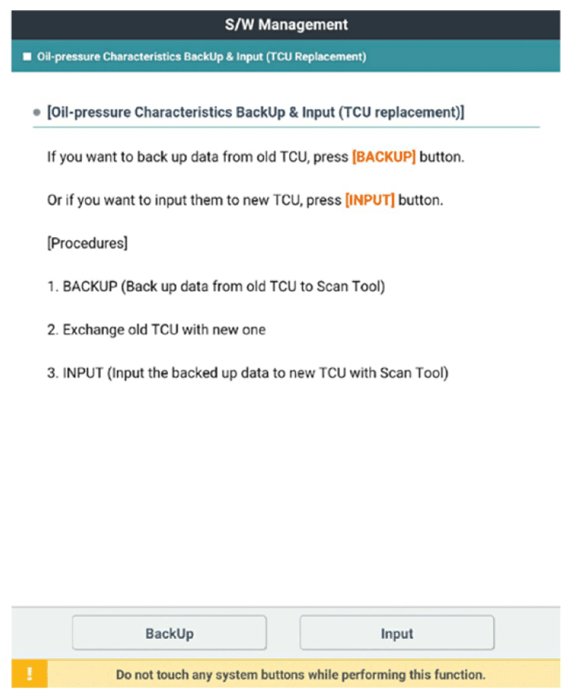

Click the "Input".

Courtesy of KIA MOTORS AMERICA, INC.

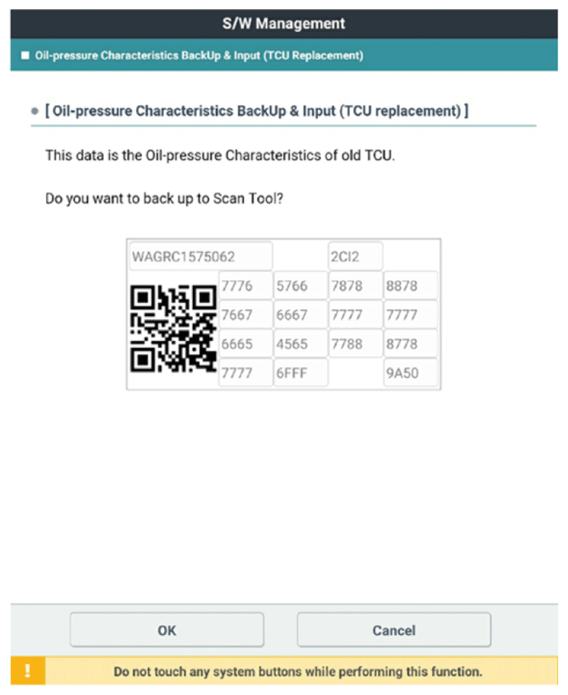

Click the "OK".

Courtesy of KIA MOTORS AMERICA, INC.

Perform the TCM adaptive values learning procedure.
(Refer to " REPAIR PROCEDURES ")
