Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

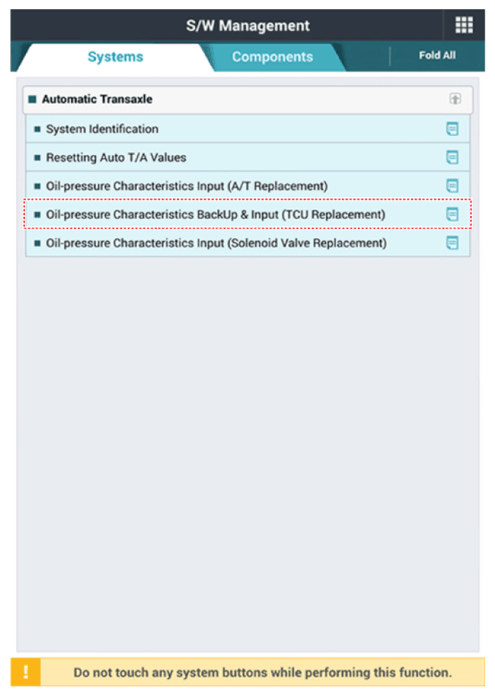

    1. Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".
      G12803739Courtesy of KIA MOTORS AMERICA, INC.

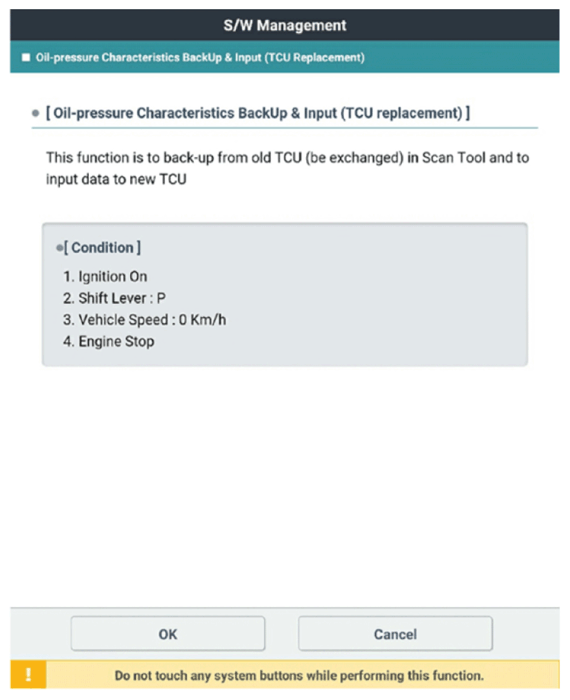

    2. Check the condition and then click the "OK".
      G12803740Courtesy of KIA MOTORS AMERICA, INC.

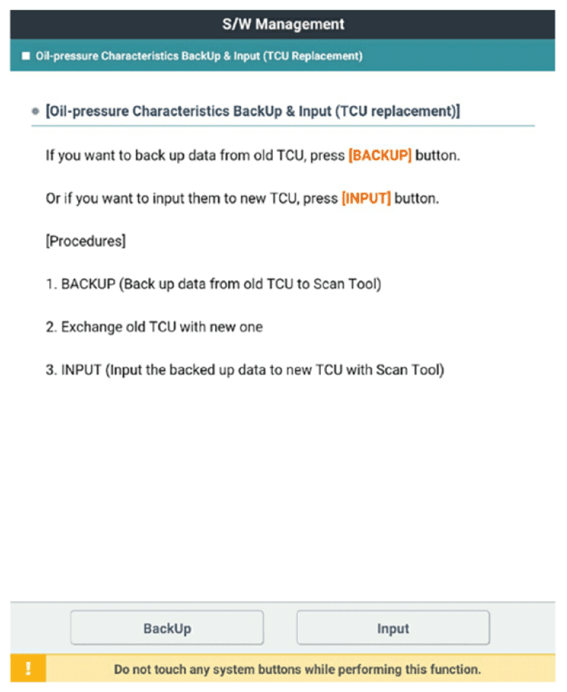

    3. Click the "BackUp".
      G12803741Courtesy of KIA MOTORS AMERICA, INC.

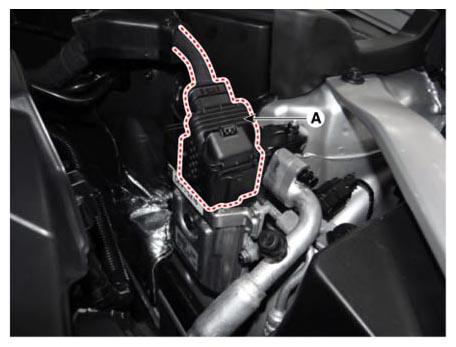

  2. Disconnect the TCM connector (A).
    G12803742Courtesy of KIA MOTORS AMERICA, INC.

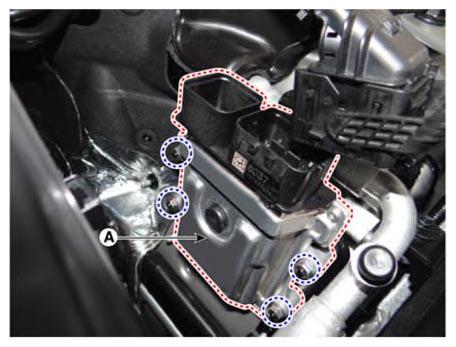

  3. Remove the TCM (A) after loosening the nuts.

    Tightening torque  :

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G12803743Courtesy of KIA MOTORS AMERICA, INC.
