Repair procedures: Removal
NOTE:
- Maintain clean condition so that foreign substance does not get into the automatic transmission.
- Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transmission.
- Remove the under cover.
(Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ").

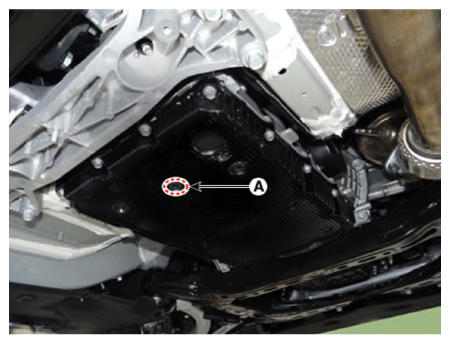

- Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:
22.6 - 24.5 N.m (2.3 - 2.5 kgf.m, 16.6 - 18.1 lb.ft)
NOTE:- ATF can be reused. Collect it in a clean beaker.

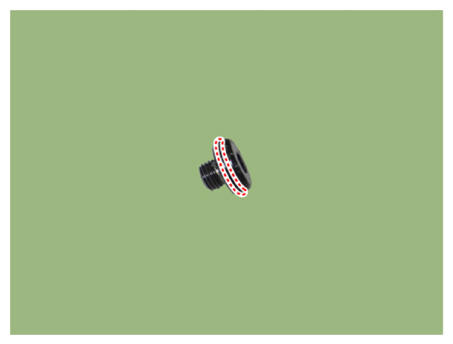

- The existing ATF drain plug O-ring must be replaced with a new one. (Do not reuse it.)

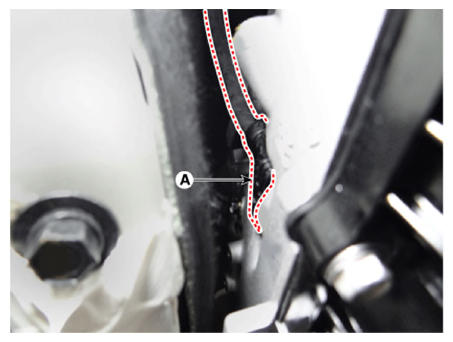

- Disconnect the main connector (A).
- Remove the valve body cover.

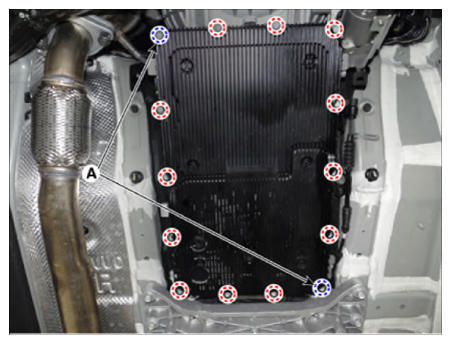

- Loosen the all valve body mounting bolts except for the bolts (A) in the corner.
Tightening torque:
13.7 - 15.7 N.m (1.4 - 1.6 kgf.m, 10.1 - 11.6 lb.ft)

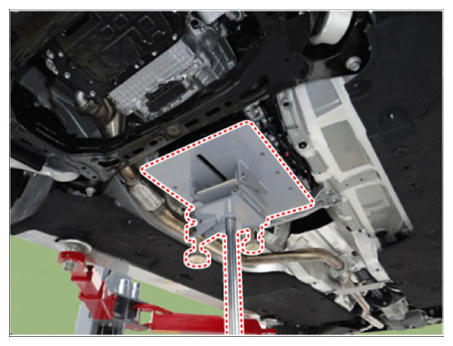

- Loosen the two bolts (A) in the corner after supporting the valve body cover on a jack and then remove the valve body cover by lowering the jack slowly.

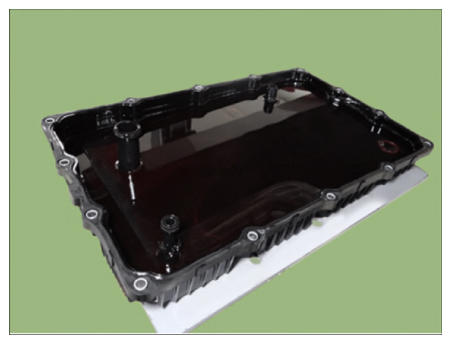

NOTE: Be careful when removing the valve body cover because the remaining ATF remains in the valve body cover. - Loosen the all valve body mounting bolts except for the bolts (A) in the corner.

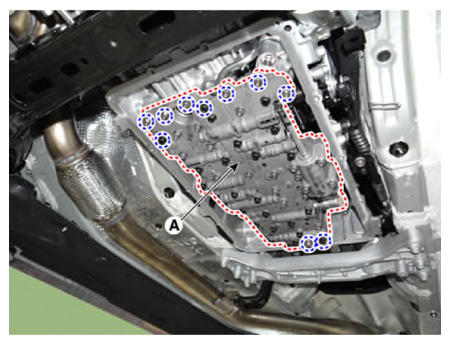

- Remove the valve body assembly (A) after loosening the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

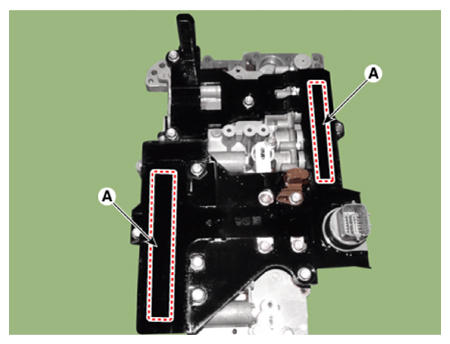

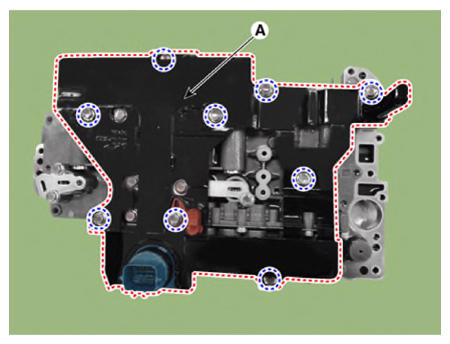

- Remove the E-module (A) after loosening the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
NOTE: When installing, after mounting the E-module, lightly tap the connector part (A) to insert the connector certainly and then tighten the bolts.
