(TCM)-Repair procedures: Installation

  1. Install in the reverse order of removal.
  2. Perform the oil pressure characteristics input procedure using the KDS when replacing with a new TCM.

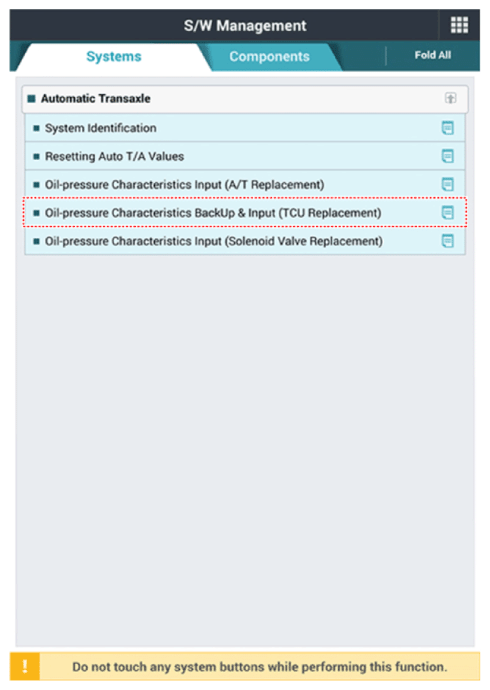

    1. Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".
      G12795256Courtesy of KIA MOTORS AMERICA, INC.

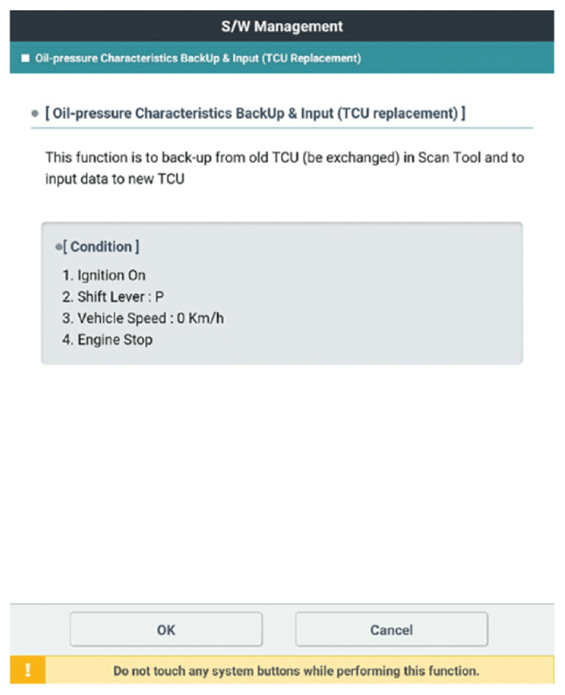

    2. Check the condition and then click the "OK".
      G12795257Courtesy of KIA MOTORS AMERICA, INC.

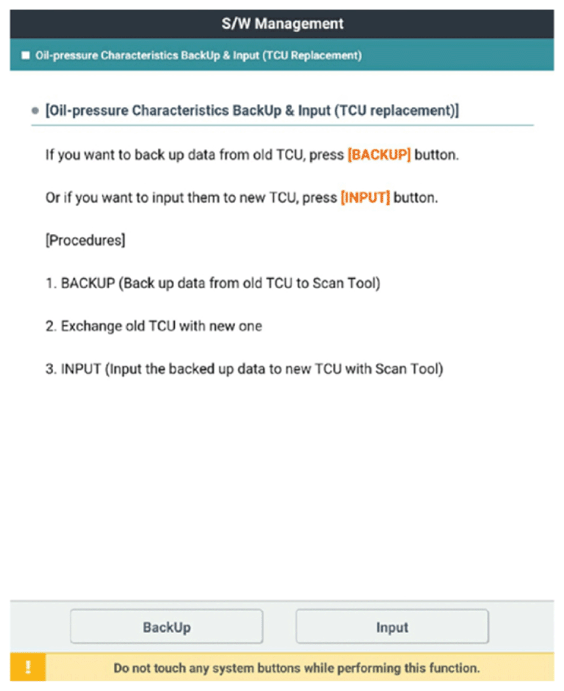

    3. Click the "Input".
      G12795258Courtesy of KIA MOTORS AMERICA, INC.

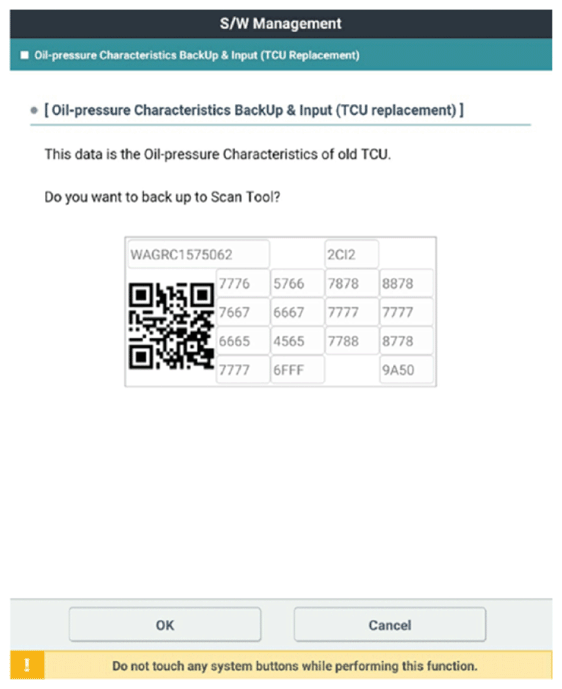

    4. Click the "OK".
    G12795259Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the TCM adaptive values learning procedure.

    (Refer to Automatic Transmission Control System - " REPAIR PROCEDURES  ")
