(TCM)-Repair procedures: Removal

Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

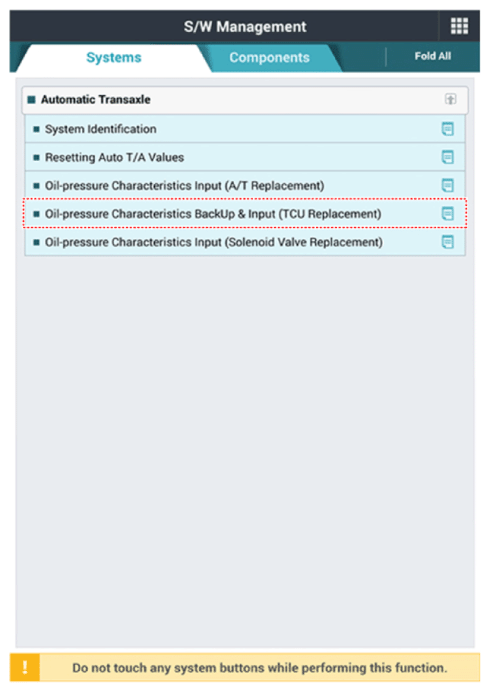

Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".

Courtesy of KIA MOTORS AMERICA, INC.

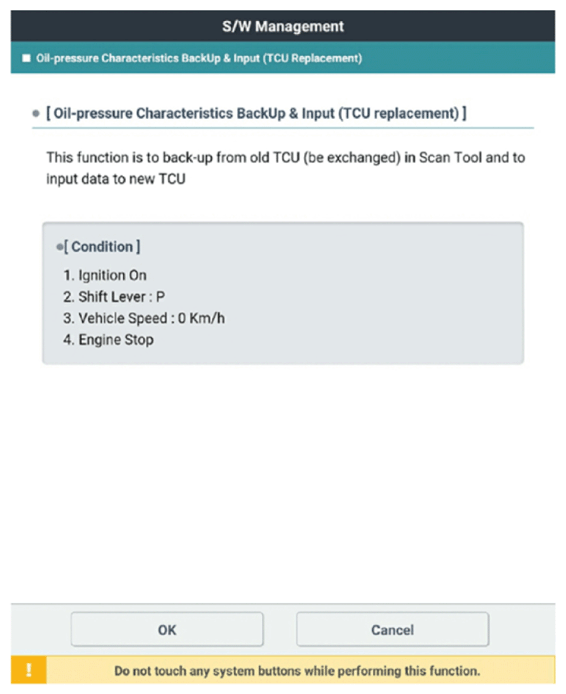

Check the condition and then click the "OK".

Courtesy of KIA MOTORS AMERICA, INC.

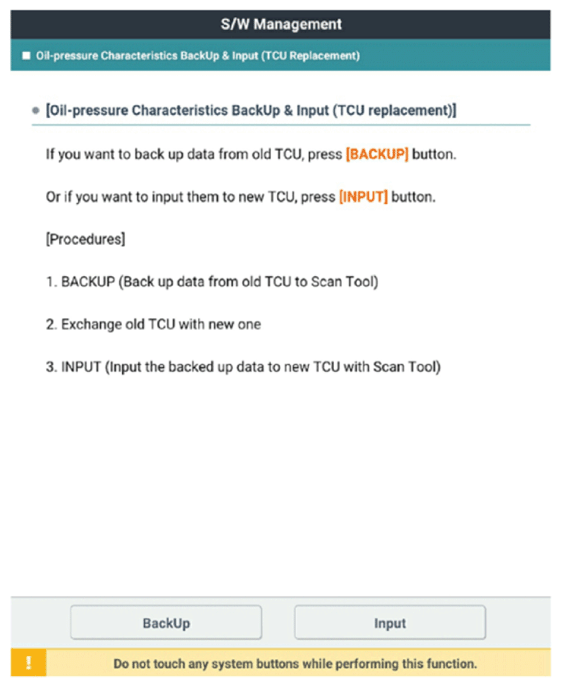

Courtesy of KIA MOTORS AMERICA, INC.

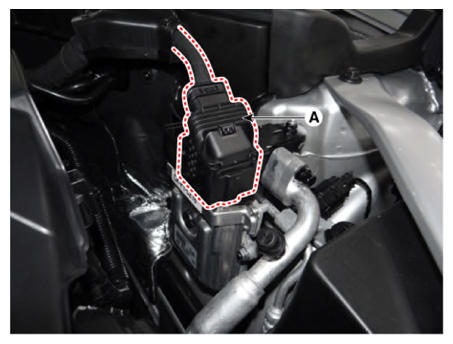

Disconnect the TCM connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

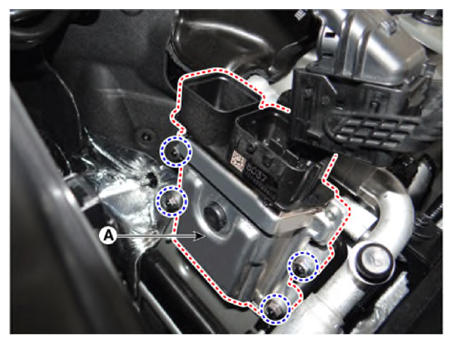

Remove the TCM (A) after loosening the nuts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
