Components & Components Location: Components

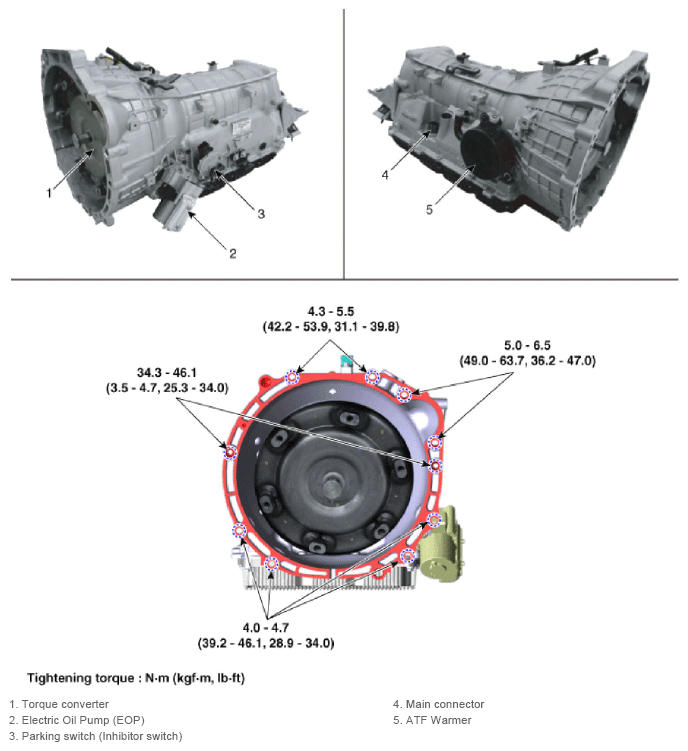

Fig 1: Automatic Transmission System Components Location With Torque Specification
G12795321Courtesy of KIA MOTORS AMERICA, INC.
