Circuit Diagram

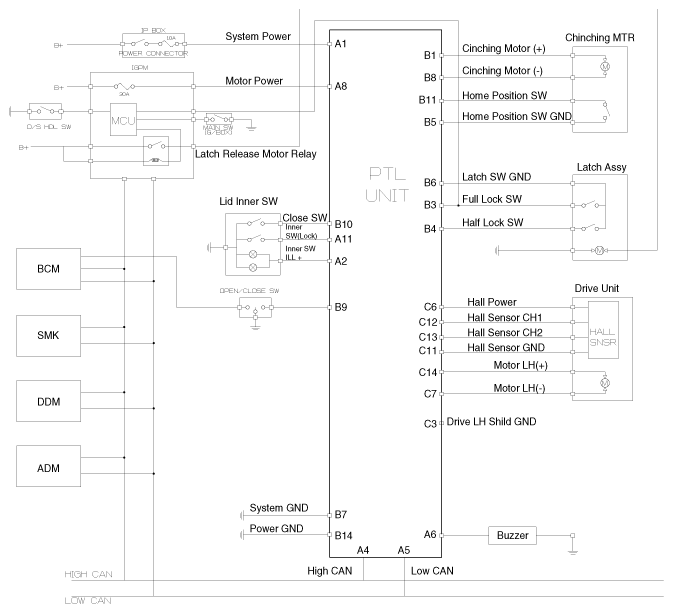

Fig 1: Power Trunk Module (PTM) Circuit
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
