Smart Key Code Saving

Connect the DLC cable of KDS to the data link connector (16 pins) in driver side crash pad lower panel, and turn on the KDS.

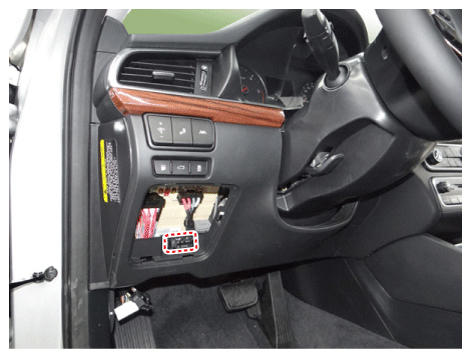

Fig 1: Data Link Connector (DLC - 16 Pins)
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart key code saving".

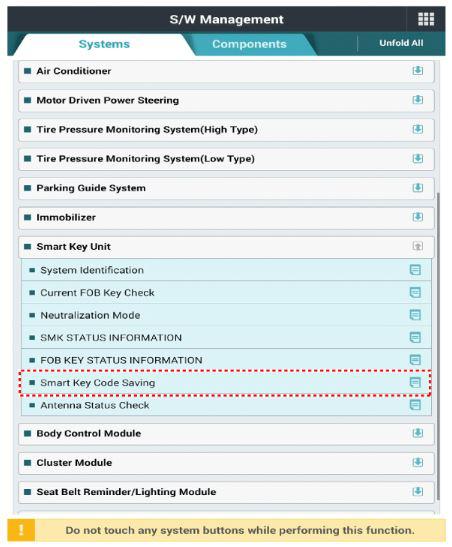

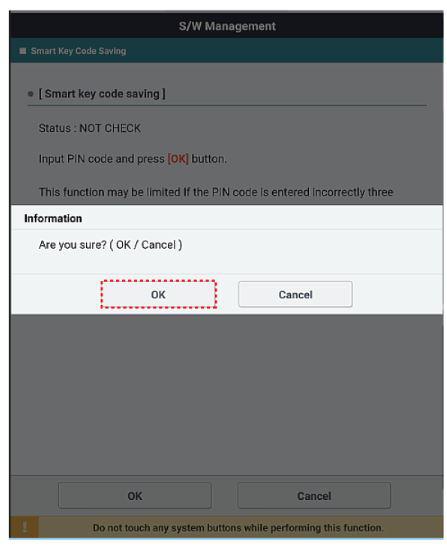

Fig 2: Screen Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Screen Display - Smart Key Code Saving - Press OK
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

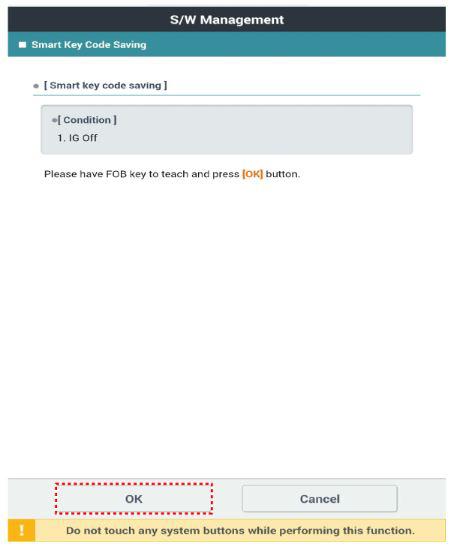

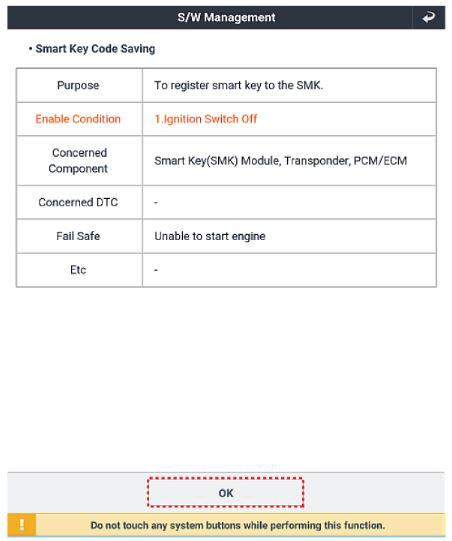

Fig 4: Screen Display - Smart Key Code Saving (Condition)
Courtesy of KIA MOTORS AMERICA, INC.
After having the teaching smart key, push "ENTER" key.
Input the "Pin code" for first key teaching.

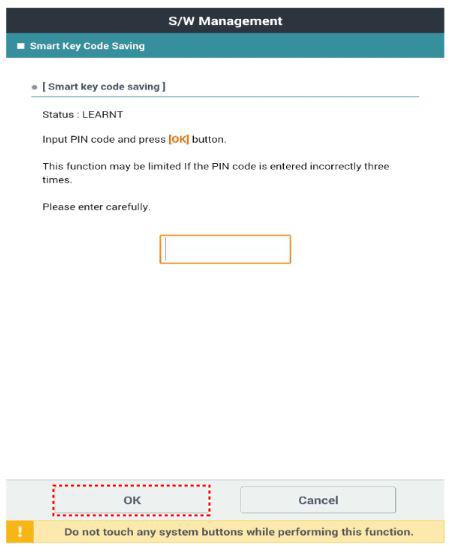

Fig 5: Screen Display - Enter Pin Code
Courtesy of KIA MOTORS AMERICA, INC.

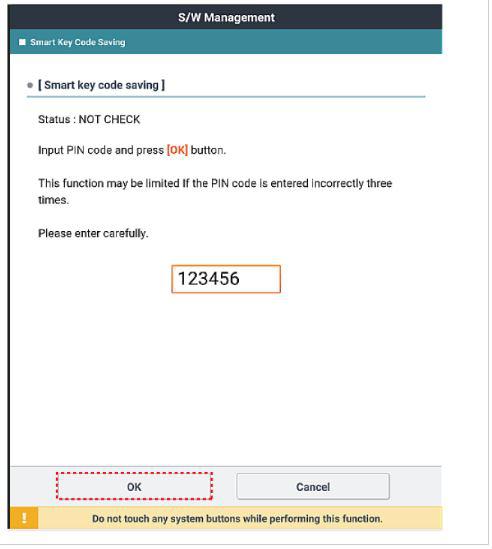

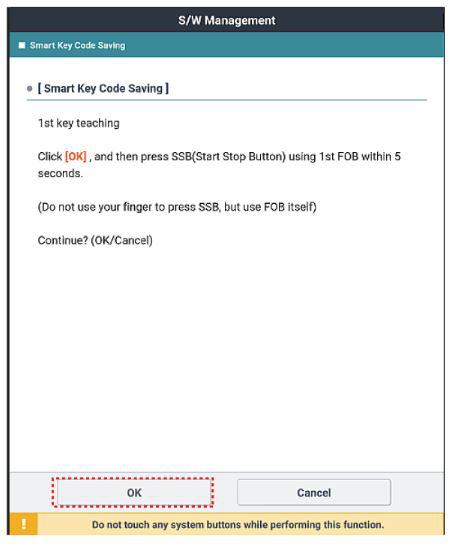

Fig 6: Screen Display - Smart Key Code Saving (Press OK Button)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Screen Display - Smart Key Code Saving (Confirmation)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

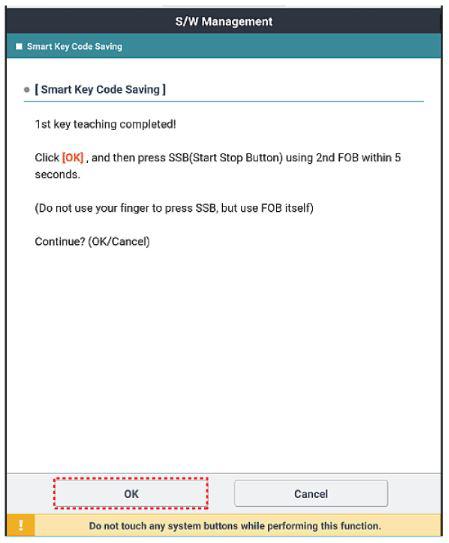

Fig 8: Screen Display - Smart Key Code Saving (First Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 seconds after pressing "OK".

Fig 9: Screen Display - Press SSB With Smart Key (Press OK Button)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

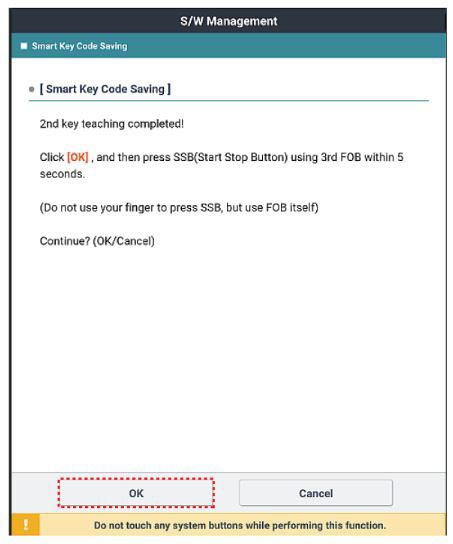

Fig 10: Screen Display - Smart Key Code Saving (Second Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.

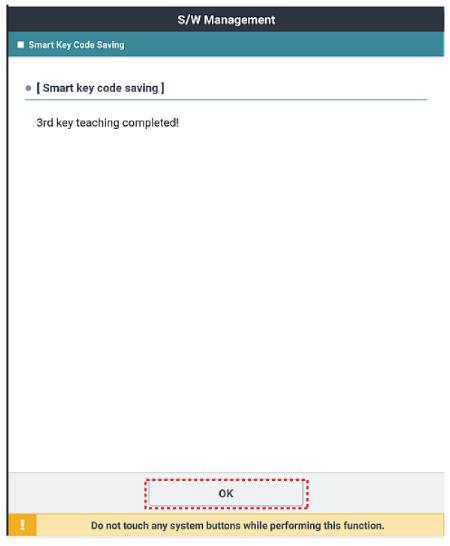

Fig 11: Screen Display - Smart Key Code Saving (3rd Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be shown as below when key teaching process is completed.

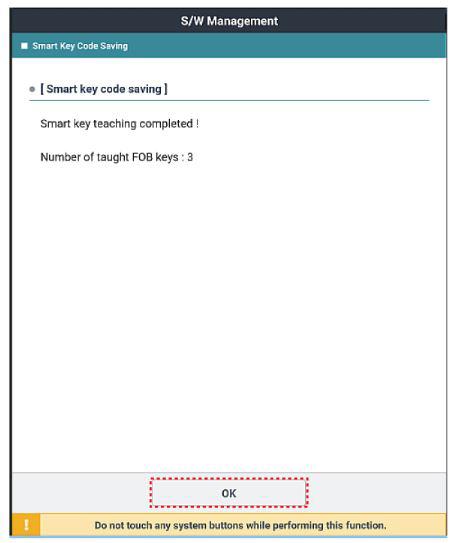

Fig 12: Screen Display - Smart Key Code Saving (Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.
