[Longitudinal G Sensor Calibration]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
[Longitudinal G Sensor Calibration]

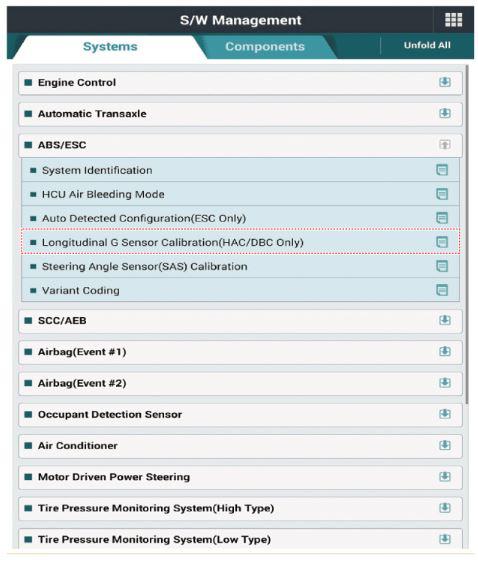

Fig 1: Scantool Display - Vehicle S/W Management (Longitudinal G Sensor Calibration)
Courtesy of KIA MOTORS AMERICA, INC.

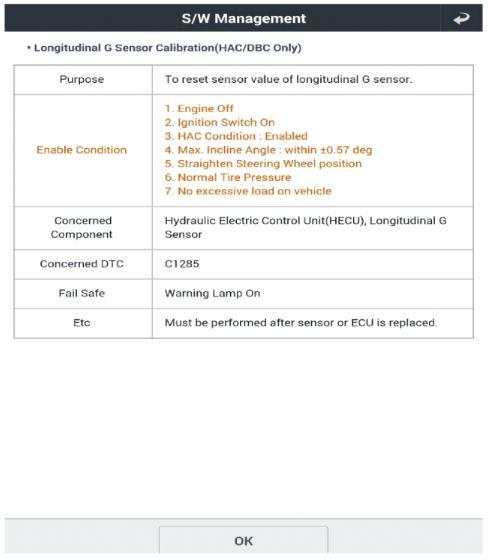

Fig 2: Scantool Display - Longitudinal G Sensor Calibration
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
