Repair Procedures: Removal

  1. Remove the front bumper.

    (Refer to Body (Interior and Exterior) - " FRONT BUMPER ASSEMBLY  ")

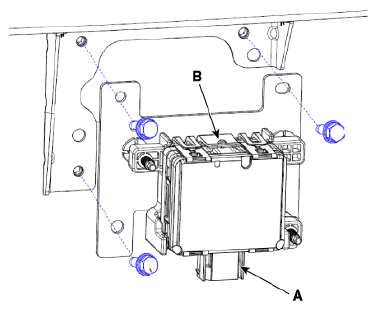

  2. Disconnect the SCC & FCA radar connector (A).
  3. Remove the SCC & FCA radar (B) after loosening the mounting nuts.
G12830117Courtesy of KIA MOTORS AMERICA, INC.
