DTC Inspection: Notes

Inspection Condition Inspection Procedure Reference
1. Ignition "ON". 1. Connect KDS to Data Link Connector (DLC).

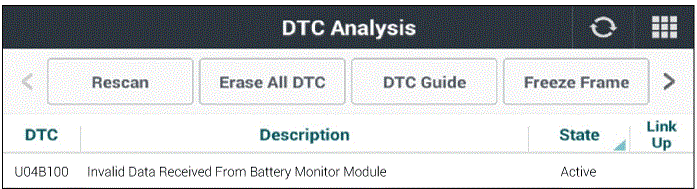

2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.		 Fig.1
G00668259Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

• Go to "Monitor KDS Data " procedure.

History/Pending Fault

• Go to "Verification Of Repair " procedure.
