Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the engine room under cover.

    G 2.0 MPI NU (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

    G 1.6 MPI GAMMA (Refer to ENGINE ROOM UNDER COVER Engine Mechanical System - "Engine Room Under Cover")

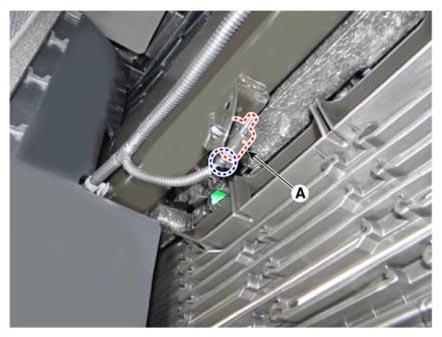

  3. Disconnect the connector and then remove the ambient temperature sensor (A).
    G14557166Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
