Repair Procedures: Removal

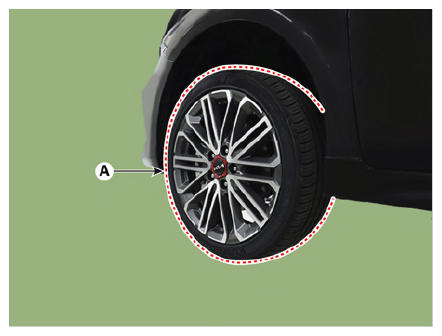

1. Remove the front wheel and tire (A).

   Tightening torque:

   107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE: Be careful not to damage the hub bolts when removing the front wheel and tire.

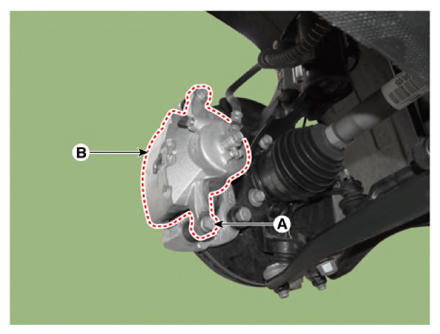

2. Loosen the guide rod bolt (A) and then pivot the caliper body (B) up out of the way.

   Tightening torque:

   21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

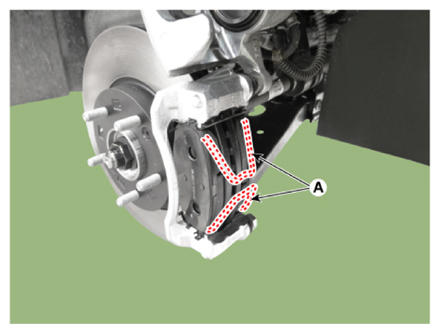

3. Remove the pad return springs (A).

   Courtesy of KIA MOTORS AMERICA, INC.

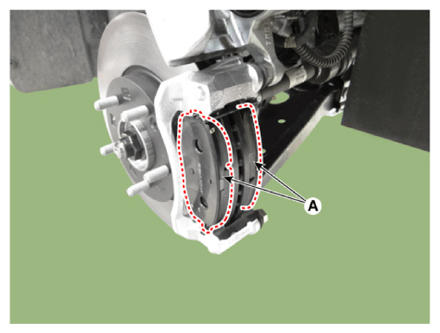

4. Remove the brake pads (A).

   Courtesy of KIA MOTORS AMERICA, INC.

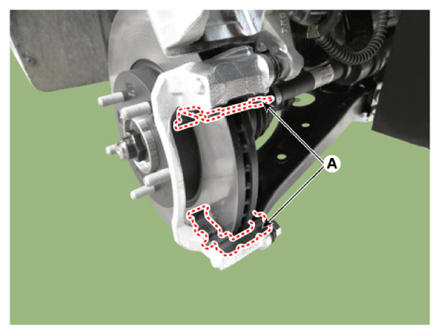

5. Remove the pad liner (A).

   Courtesy of KIA MOTORS AMERICA, INC.

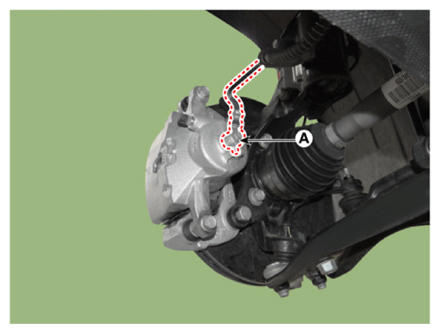

6. Disconnect the brake hose (A) from the brake caliper by loosening the bolt.

   Tightening torque:

   24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

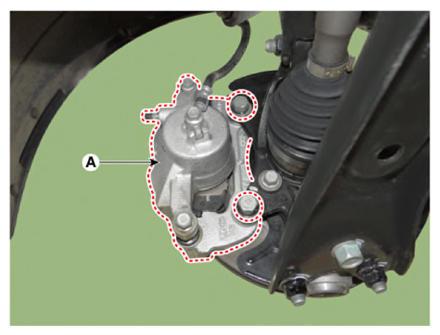

7. Remove the brake caliper (A) by loosening the bolts.

   Tightening torque:

   78.4 - 98.0 N.m (8.0 - 10.0 kgf.m, 57.8 - 72.3 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

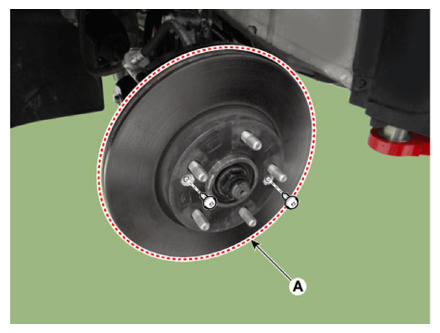

8. Remove the front brake disc (A) by loosening the screws.

Tightening torque:

4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb.ft, 43.4 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
