Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Open the cover and loosen the front seat mounting bolts.

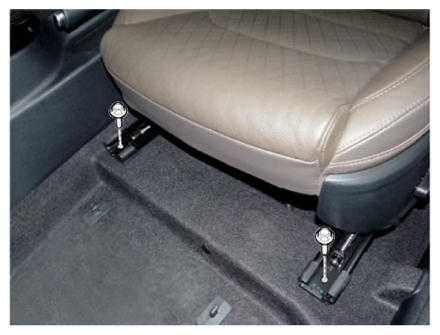

[Front]

Tightening torque:

49 - 58.8 N.m (5 - 6 kgf.m, 36.2 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

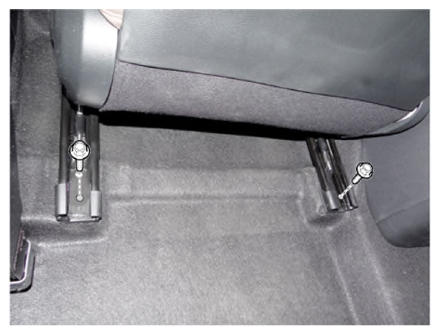

[Rear]

Tightening torque:

49 - 58.8 N.m (5 - 6 kgf.m, 36.2 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the main connector (A), front seat belt buckle connector (C), airbag connector (B), seat belt reminder connector (D).

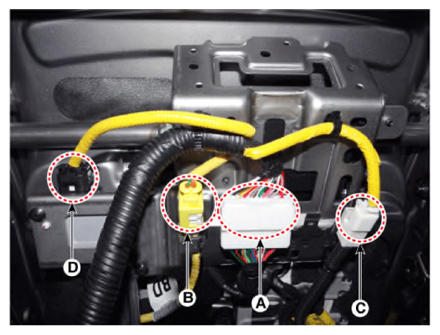

[Driver's]

Courtesy of KIA MOTORS AMERICA, INC.

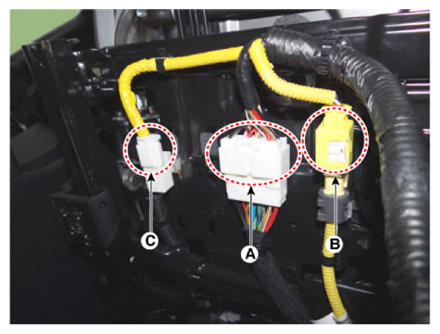

[Passenger's]

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information

The installation procedures of seat mounting bolts
- Push the seat to the rear end of slides and initially tighten the front mounting bolts.
- Push the seat to the front end of slides and completely tighten the rear mounting bolts.
- Send the seat to the rear end again to completely tighten the front mounting bolts.
- Check the seat for smooth movement.
- For the non - automatic slide seats, check the seats are fixed at each designated fixing position.
