Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tire.

    (Refer to "TIRE ")

  2. Remove the screw with torx driver (A).
    CAUTION:
    • When installing the bead brake, make sure that it does not come in contact with the TPMS sensor.
    • Be careful not to damage the TPMS sensor when installing the bead brake near the TPMS sensor.
    G12818106Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the sensor body (A) from the valve (B) in the direction of the arrow.
    G12818107Courtesy of KIA MOTORS AMERICA, INC.
  4. Use the valve mounting tool to pull out the valve until it is entirely out of the lower hole.
    G12818108Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Cut the rubber (A) at the bottom of valve with a knife.
    G12818109Courtesy of KIA MOTORS AMERICA, INC.
  5. Apply lubricant to the surface of the valve, and then mount it through the valve hole of the wheel.
    NOTE: We recommend using regular soapy water as lubricant.
    G12818110Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION:
    • The TPMS sensor valve bottom is not properly sealed if it is not fully mounted on the wheel, as shown in the following illustration:
      G12818111Courtesy of KIA MOTORS AMERICA, INC.
    • Make sure that the valve body is pulled entirely through the hole.
      G12818112Courtesy of KIA MOTORS AMERICA, INC.

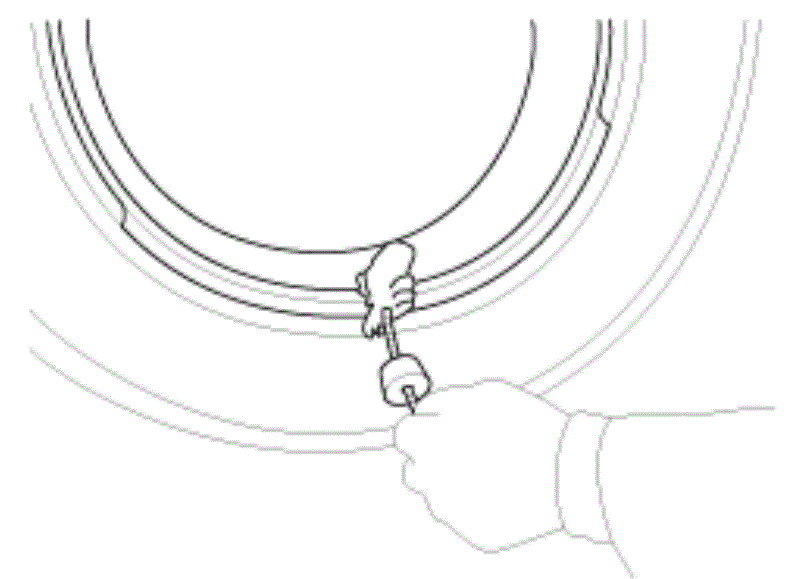

  6. Apply soapy water or lubricant to the upper/lower bead section of the tire.
    G12818113Courtesy of KIA MOTORS AMERICA, INC.
  7. In order to mount lower the beads, place the TPMS sensor at 5 o'clock, starting from the head of the tire replacement equipment.
    G12818114Courtesy of KIA MOTORS AMERICA, INC.
  8. Rotate the rim clockwise and press tire towards 3 o'clock to mount the lower beads.
    CAUTION:

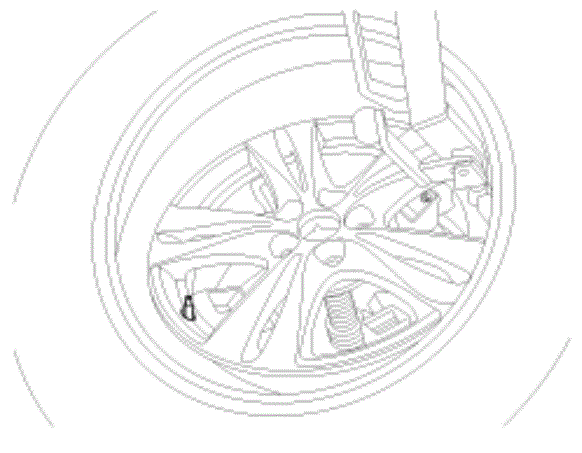

    • Mount the tire on the wheel. Make sure that the beads touch the edge of the rim behind the sensor (towards 6 o'clock).
    G12818115Courtesy of KIA MOTORS AMERICA, INC.

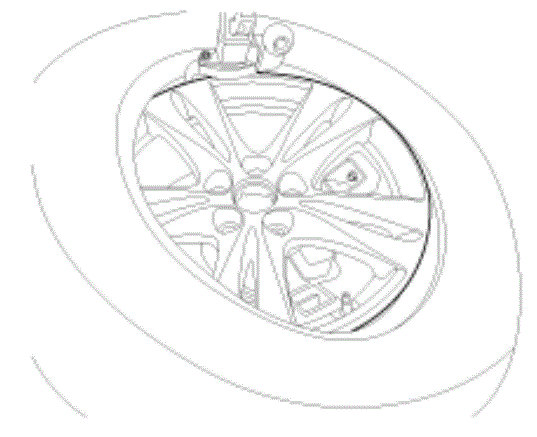

  9. In order to mount the upper beads, press the tire towards 3 o'clock and turn the rim clockwise.
    G12818116Courtesy of KIA MOTORS AMERICA, INC.

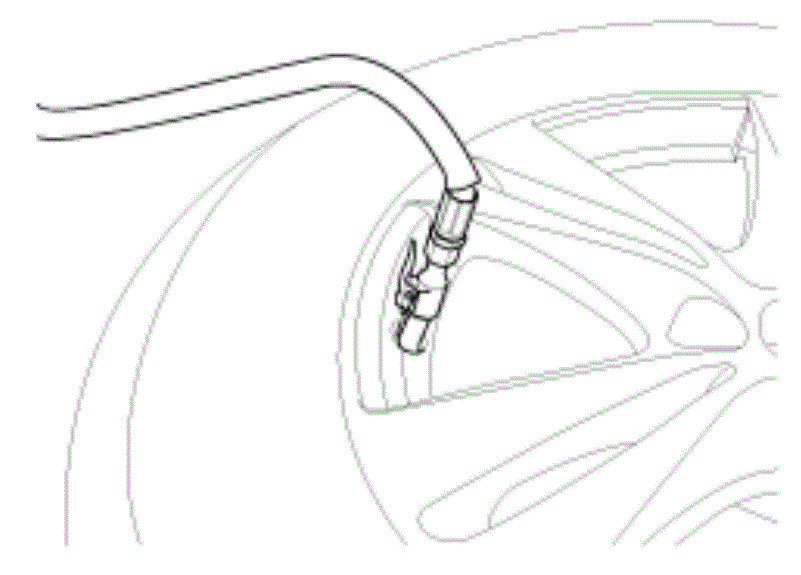

  10. Inject air into the tire until the beads are in the correct position.
    G12818117Courtesy of KIA MOTORS AMERICA, INC.
  11. Adjust the tire pressure according to the recommended tire pressure for the vehicle.
  12. If the TPMS sensor malfunctions, you must perform TPMS sensor learning. Replace any faulty sensors and perform TPMS sensor learning.
