[Upper Steering Wheel Remote Control Switch]

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
(Refer to "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ").
Remove the steering wheel.
(Refer to "STEERING COLUMN & SHAFT ").
Loosen the mounting screws from the rear steering wheel cover.

Fig 1: Loosening Mounting Screws From Rear Steering Wheel Cover
Courtesy of KIA MOTORS AMERICA, INC.

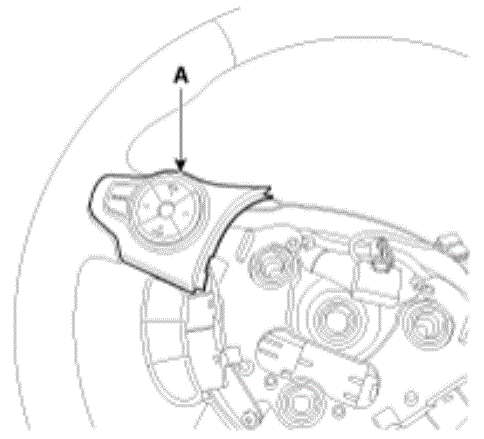

Separate the upper steering wheel remote control switch (A) from the steering wheel.
[LH]

Fig 2: Locating Upper Steering Wheel Remote Control Switch From Steering Wheel (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 3: Locating Upper Steering Wheel Remote Control Switch From Steering Wheel (RH)
Courtesy of KIA MOTORS AMERICA, INC.

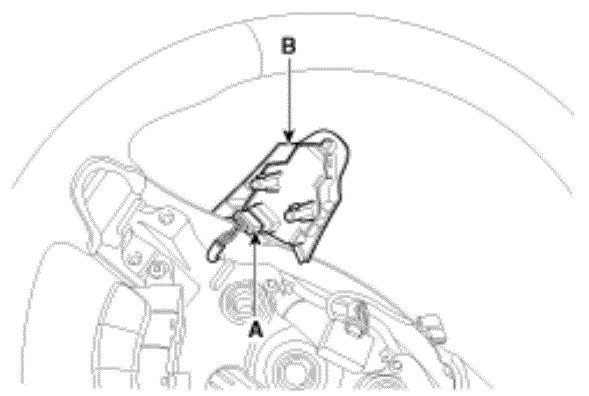

Remove the upper steering wheel control switch (B) disconnecting the connector (A).
[LH]

Fig 4: Removing Upper Steering Wheel Control Switch Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 5: Removing Upper Steering Wheel Control Switch Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.
