Section 47 (Audio System): Troubleshooting: Camera

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. 1. Features/Misdiagnose cases
    Inspection Description
    (1) System features
    1. Camera system features
      1. Change to H/U camera mode at gear R
      2. Steering wheel feature with CAN enabled Camera
      3. Diagnostic Trouble Code (DTC) feature added to CAN enabled camera
      4. Video Format - current: Analog/YG, HI: LVDS applied (New)
      5. Camera power ON (below 35~40km/h, 2015 Q4)
    2. AVM system features
      1. Change to H/U Rear view camera and AVM display at gear R
      2. On gear D, Rear view → Front view change at speed below 10km/h (AVM is ON)
      3. On gear D, Navigation mode change at speed above 10km/h (AVM is ON)
      4. Video format: CVBS, S-VIDEO, Component, LVDS
    (2) Misdiagnose cases
    1. Camera misdiagnose cases
      1. Video quality: Rear view camera have low quality spec (0.3 megapixel), dirt on lens
      2. Bumper showing too much: Camera angle
      3. Blinks on start of ignition: Black curtain process for AVN boot spec
      4. Parking guideline length: Camera location
      5. Blue screen: Possible camera output defect from AVN, AVM (Possible connector, cable defect)
    2. AVM misdiagnose cases
      1. Top view distortion: In-line correction error. Re-correction fixes issue
      2. Broken image pixel: Incomplete correction due to power OFF during correction process
      3. Camera screen defect (Top/Front/Rear/Left/Right): Possible camera defect
  2. 2. Camera issue (Black screen/Blue screen/Noise/Broken)
    Issue Inspection Description
    Camera issue (Black screen/Blue screen/Noise/Broken) (1) Duplicate issue
    • Check gear R
    • Open/close door
    • Test drive to duplicate issue
    G12820747G12820748G12820749Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.
    1. Check gear R

      (Normal: Camera+ Guide line + warning message)

      Fig 1: Screen Display - Check Gear R (Normal; Camera+ Guide Line + Warning Message)
      G12820748Courtesy of KIA MOTORS AMERICA, INC.

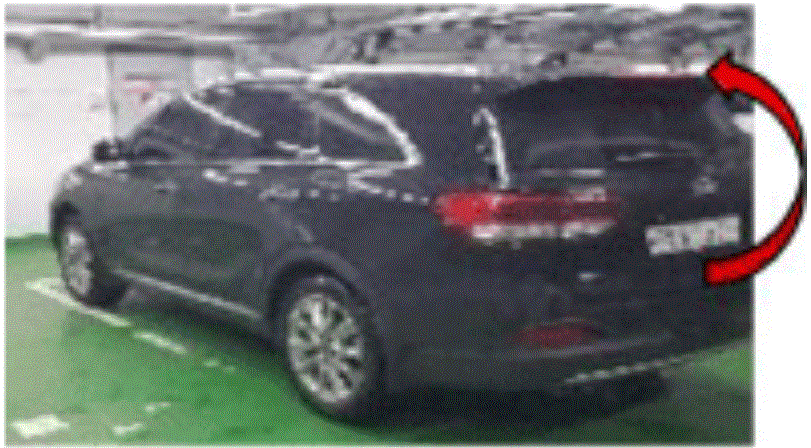

    2. Open/close door test

      (Duplicate issue at angles)

      Fig 2: Screen Display - Open/Close Door Test (Duplicate Issue At Angles)
      G12820749Courtesy of KIA MOTORS AMERICA, INC.
    3. Test drive

      (Drive impact)


    If issue duplicates, follow steps below
    Camera issue (Black screen/Blue screen/Noise/Broken) (2) Search & remove defect factor
    • Connection
    • Damage
    • Camera power
    • Display signal
    • Wiring
    		 *If AVM is installed, also test side doors

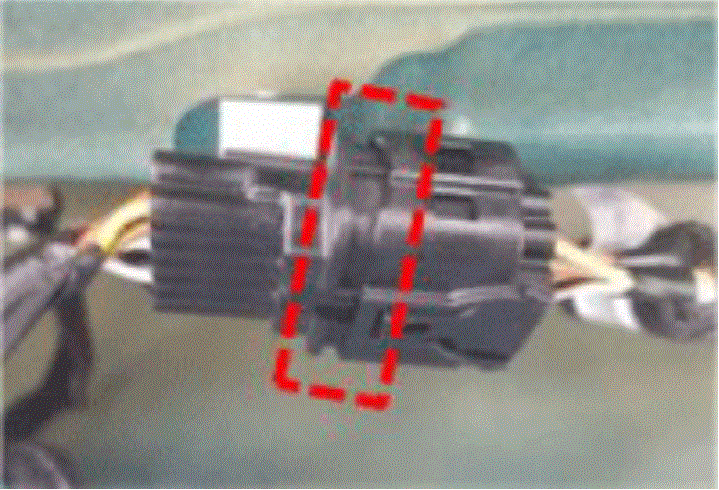

    1. Camera connection
      Fig 3: Checking Camera Connection
      G12820750Courtesy of KIA MOTORS AMERICA, INC.
      1. Remove trunk cover and find camera connector
      2. Connection must be locked in

        → Check display

    2. Check camera damage
      Fig 4: Checking Camera Damage Area
      G12820751Courtesy of KIA MOTORS AMERICA, INC.
      1. Remove any dirt on lens
      2. Damage on lens, cracks → Moist inside camera
        • Fault by customer if camera is physically damaged from outside

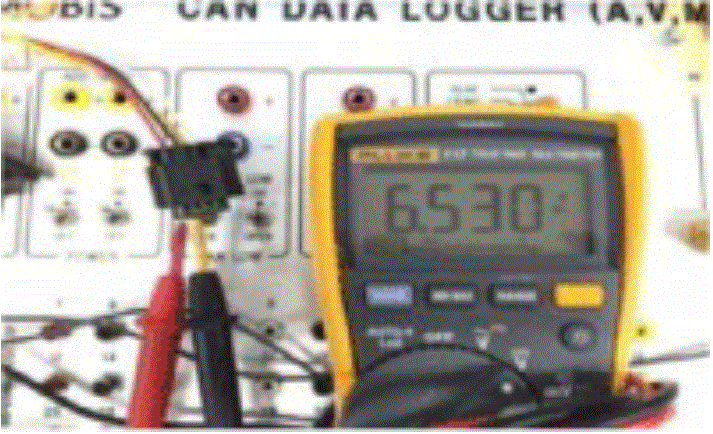

    3. Check camera voltage at gear R
      Fig 5: Checking Camera Voltage At Gear R
      G12820752Courtesy of KIA MOTORS AMERICA, INC.
      1. Red line: 6.5V, Black line: GND
      2. If there is no 6.5V input follow below steps
        1. Cable
        2. Power module
      3. Camera power source
        1. AVN Direct: AVN → Camera
        2. AVM: AVM → Camera
    Camera issue (Black screen/Blue screen/Noise/Broken) (2) Search & remove defect factor
    • Connection
    • Damage
    • Camera power
    • Display signal
    • Wiring

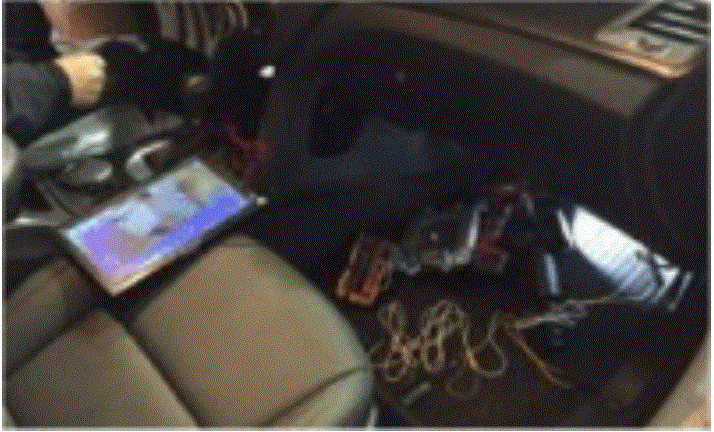

    1. 4. Check with other monitor
      Fig 6: Checking Camera With Other Monitor
      G12820753Courtesy of KIA MOTORS AMERICA, INC.

      *If other monitor is not available, replace camera instead

      1. Use other monitor to test video input
      2. Yellow line: CVBS video, White: Video GND
        1. Monitor <=>/AVN X → AVN defect
        2. Monitor X/AVN X → Camera defect
    2. 5. Check camera ↔ AVN wiring

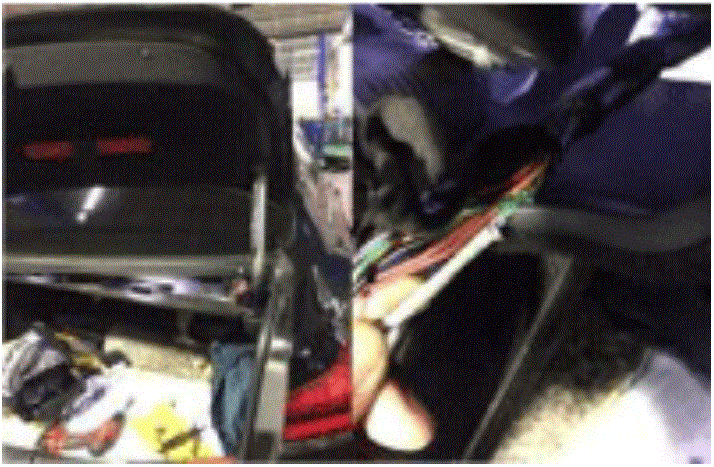

      Fig 7: Checking Camera ↔ AVN Wiring
      G12820754Courtesy of KIA MOTORS AMERICA, INC.
      1. Camera ↔ AVN Wiring check
      2. For Pin contact testing, include cable company if available
    Short on wire is common due to driving impact
  3. 3. Display issue (Display quality/Foggy/Foreign object)
    Issue Inspection Description
    Display issue (Quality/Foggy/Foreign Object) (1) Duplicate issue
    • Check gear R
    G12820755Courtesy of KIA MOTORS AMERICA, INC.

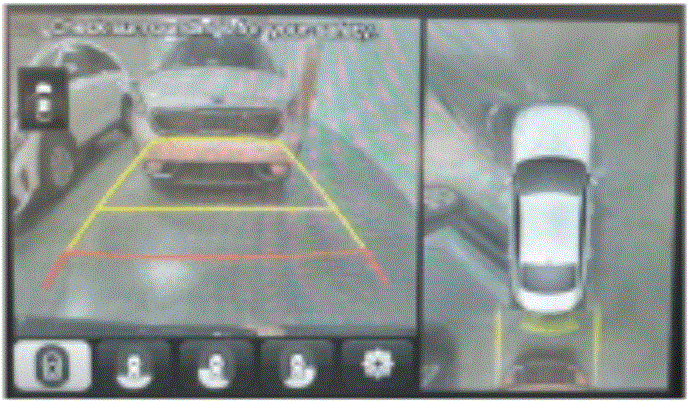

    1. Duplicate issue by checking gear R

      (Normal: Compare with other vehicle)
    (2) Search & remove defect factor
    • Camera status
    • Open/close trunk test
    G12820756G12820757Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.

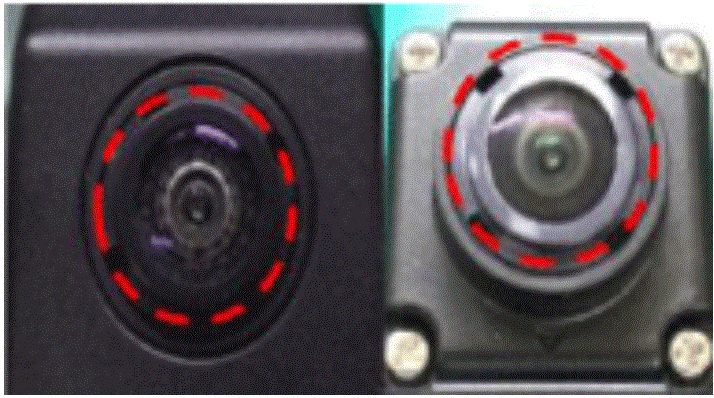

    1. Camera status
      1. Foreign object
      2. Damaged coating
      3. Clean lens using soft cloth
      Fig 8: Camera Status Damage Area
      G12820757Courtesy of KIA MOTORS AMERICA, INC.

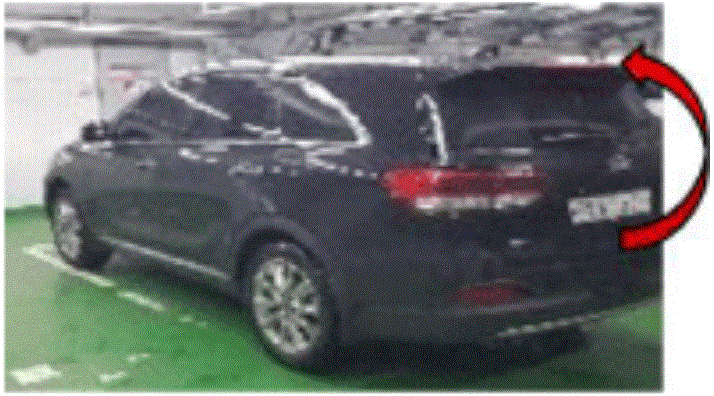

    2. Open/Close trunk test

      (Duplicate at certain angle)

    • Lens assembly error caused lens move inside camera → Camera can be foggy
  4. 4. Parking guideline (Distortion)
    Issue Inspection Description
    Parking guideline issue (Distortion) (1) Duplicate issue
    • Use parking guideline to test parking

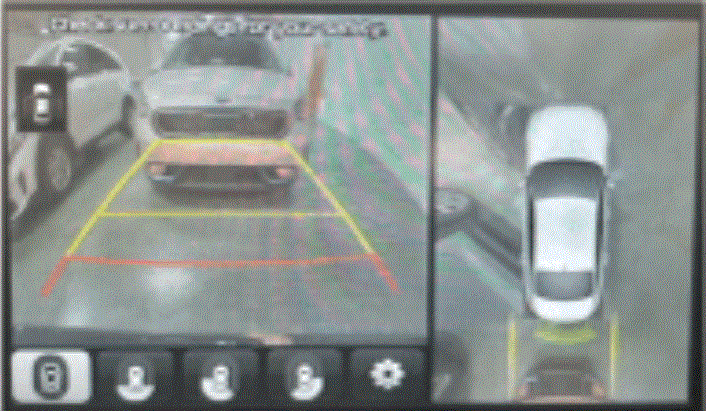

    G12820758G12820759Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.

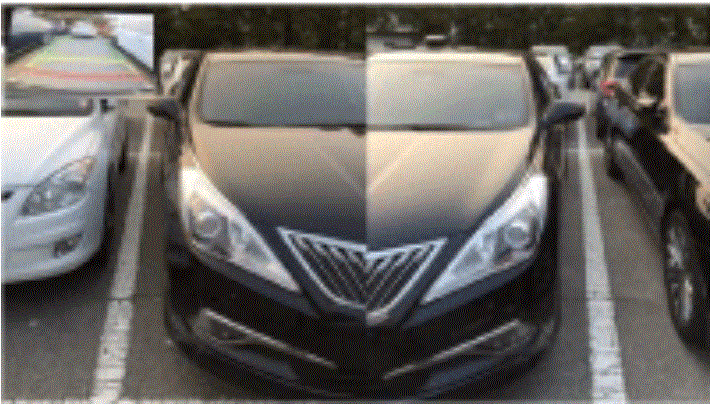

    1. Use parking guideline to test parking
      Fig 9: Screen Display - Vehicle Direction And Guideline Match
      G12820759Courtesy of KIA MOTORS AMERICA, INC.
    2. Check if vehicle direction and guideline is match

    For safety, guideline appears +10cm wider (left/right) than actual vehicle
    (2) Search & remove defect factor
    • Confirm specs
    • Camera connection
    G12820760G12820761Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.

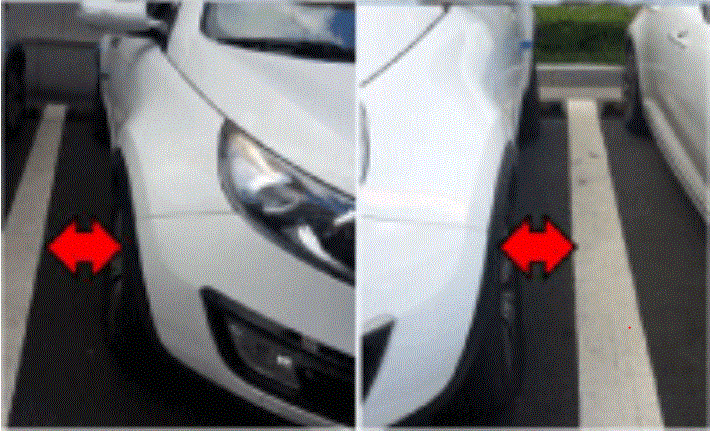

    1. Confirm specs

      (Normal: Vehicle ↔ guideline within +,-15cm)

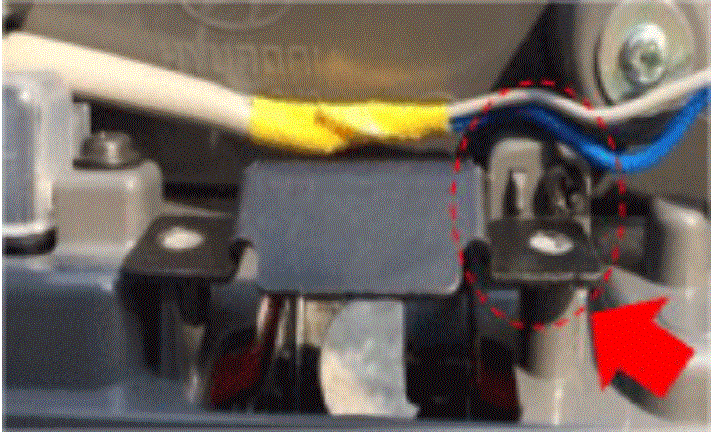

      Fig 10: Checking Camera Connection
      G12820761Courtesy of KIA MOTORS AMERICA, INC.
    2. Camera connection
      • Check camera bracket
      • Check screw status
      • Re-connect the screw and re-test

    Reason for 15cm deviation: 1. Camera setting deviation 2. Guideline width (Actual area 10cm)
  5. 5. AVM (Distortion/Broken pixel)
    Issue Inspection Description
    AVM (Distortion/Broken pixel) (1) Duplicate issue
    • Parking test
    • Broken pixel on certain area
    G12820762G12820763Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.

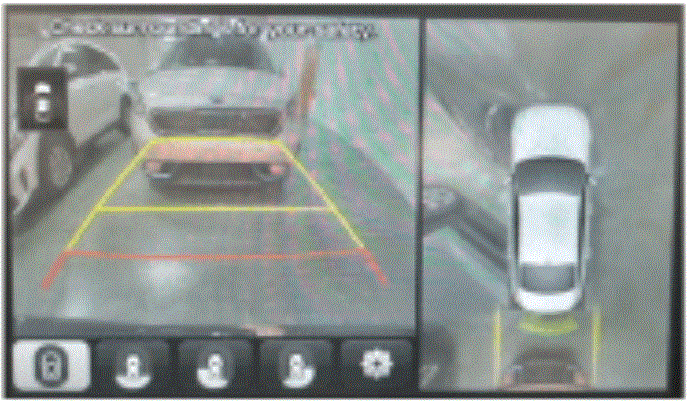

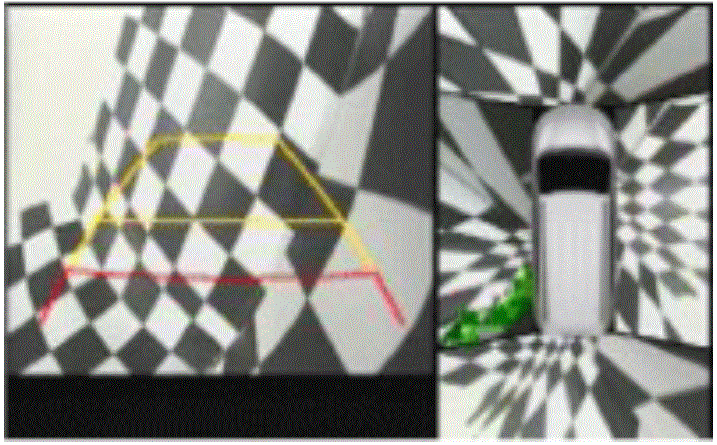

    1. Duplicate issue at gear R

      (Normal: Top view, parking line is straight)

      *Top view is displayed on the right

      Fig 11: Screen Display - AVM (Distortion/Broken Pixel)
      G12820763Courtesy of KIA MOTORS AMERICA, INC.
    2. Check for broken pixel

      (Cause: data store error during correction)


    Above issues can be treated with re-correction process
    (2) Search & remove defect factor
    • Re-correction
    • Replace Camera/AVM
    G12820764G12820765Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.

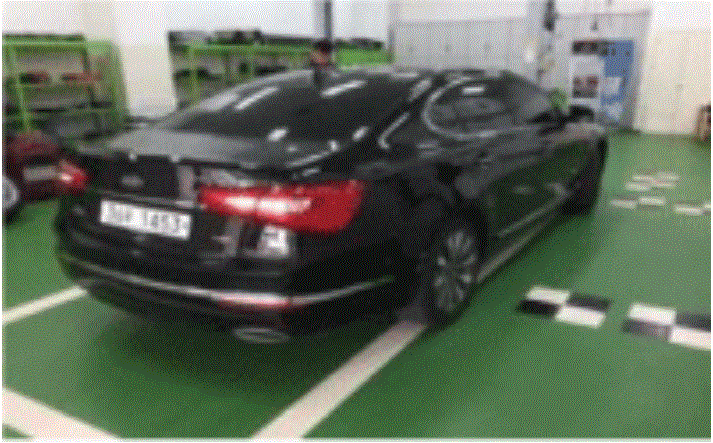

    1. Re-correction
      1. Service center AVM correction room (Recommended)
      Fig 12: Replacing Camera/AVM
      G12820765Courtesy of KIA MOTORS AMERICA, INC.
    2. If issue continues, replace camera/AVM and re-test
      1. Possible camera output defect
      2. Possible correction data memory defect
  6. 5. AVM Defect (black & white screen)
    Issue Inspection Description
    AVM (No colors) (1) Duplicate issue
    • Check gear R
    • Test drive

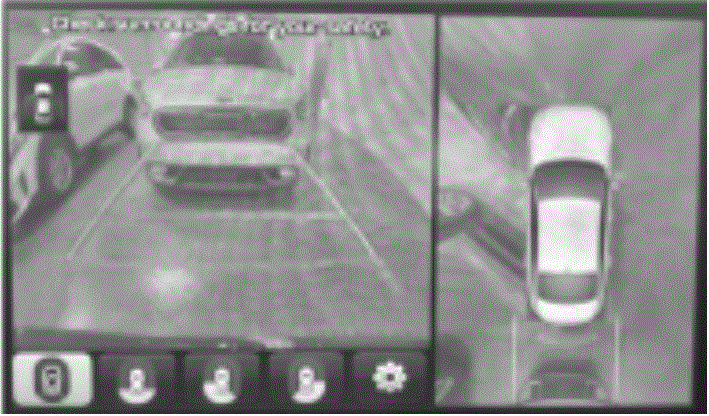

    G12820766G12820767Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.
    1. Duplicate issue at gear R

      (Check black/white screen)

      Fig 13: Screen Display - Duplicate Issue At Gear R (Check Black/White Screen)
      G12820767Courtesy of KIA MOTORS AMERICA, INC.
    2. Test drive to duplicate issue

      (Drive on rough road to supply shock with vehicle)

    • OSD outputs from AVN *Color (OSD: Select view mode, Door open UI)
    (2) Search & remove defect factor
    • Re-correction
    • Replace test
    		 * Check if issue gets resolved when tapping on AVM connector
    G12820768G12820769Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.

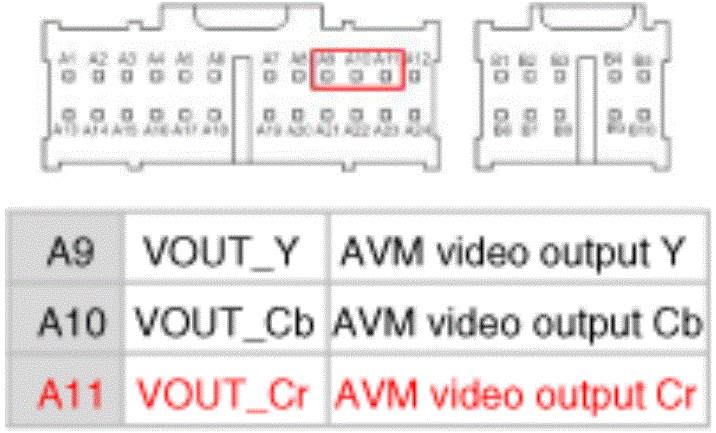

    1. Inspect AVM VOUT_C
      1. Check vehicle spec (S-VIDEO, Component)

        * Check with related department with vehicle spec

      2. Luminance (Y)+Color (C)=Video/Black screen if color signal is not available

        * Component: Use 2 C signals (Cb, Cr)

        Cable/Connector issue

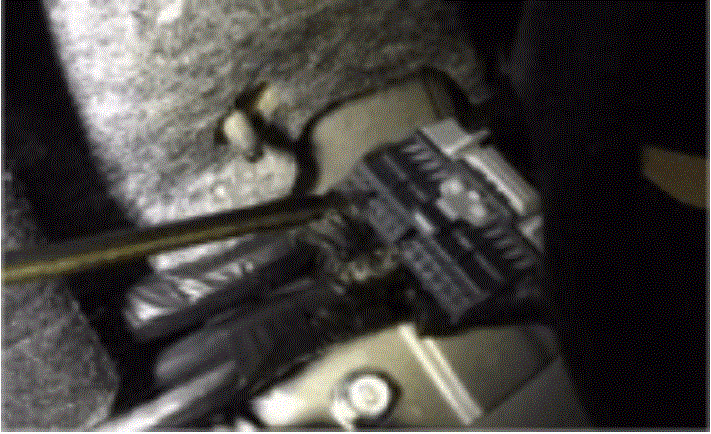

      Fig 14: Checking AVM Connector
      G12820769Courtesy of KIA MOTORS AMERICA, INC.
    2. Check AVM connector
      1. Connector connection (Must be locked)
      2. Check tension on Vehicle female connector

        VOUT_C (A10) tension (2.5)
