Component Inspection

Inspection Condition	Inspection Procedure	Reference

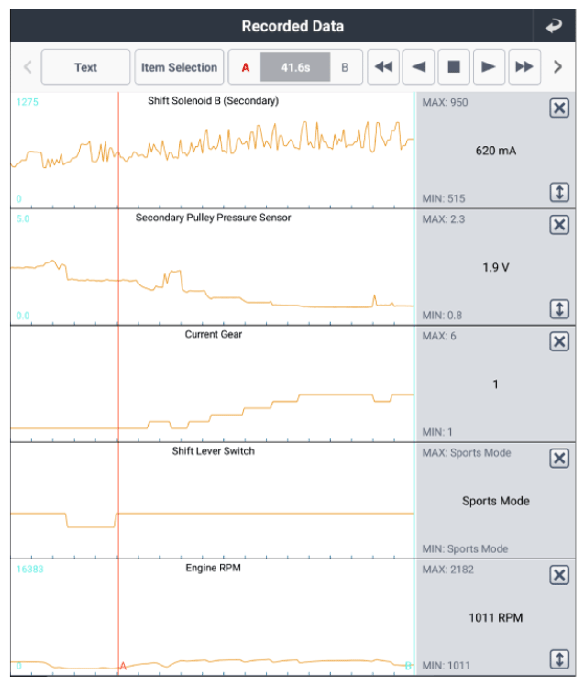

Ignition "ON" Engine "ON" Driving a Vehicle	Connect KDS to Data Link Connector (DLC). Engine "ON" Operate vehicle or system in accordance with enable condition in DTC detecting condition. Monitor selected parameters shown below in "Current Data" with KDS.	Figure

G12865337

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace PCM and do "S/W Management - Oil-pressure Characteristics BackUP & Input (TCU Replacement)" and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Components has bending, corrosion, contamination, deterioration, and/or damage that would be problem and go to "VERIFICATION OF VEHICLE REPAIR " procedure when the component are replaced.
Refer to "REPAIR PROCEDURES " and repair or replace the A/T (Perform the S/W Management when replace the transmission)
Perform the S/W management of P073000 code and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
