Connector And Terminal function

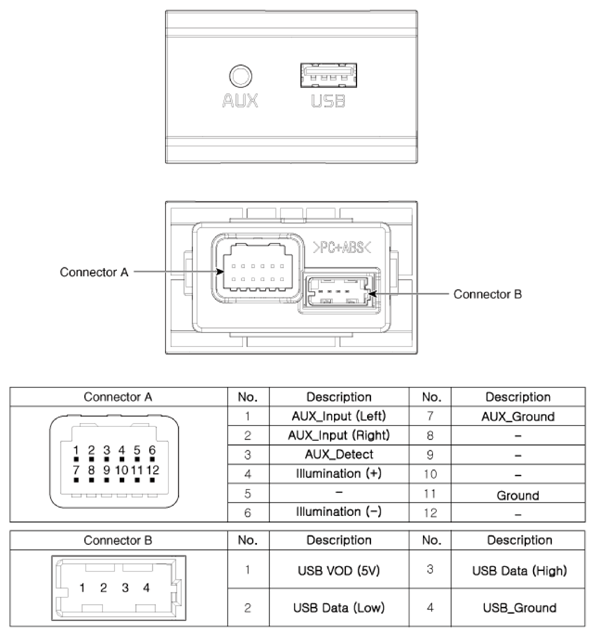

Fig 1: Multimedia Jack Connector And Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
