Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below.

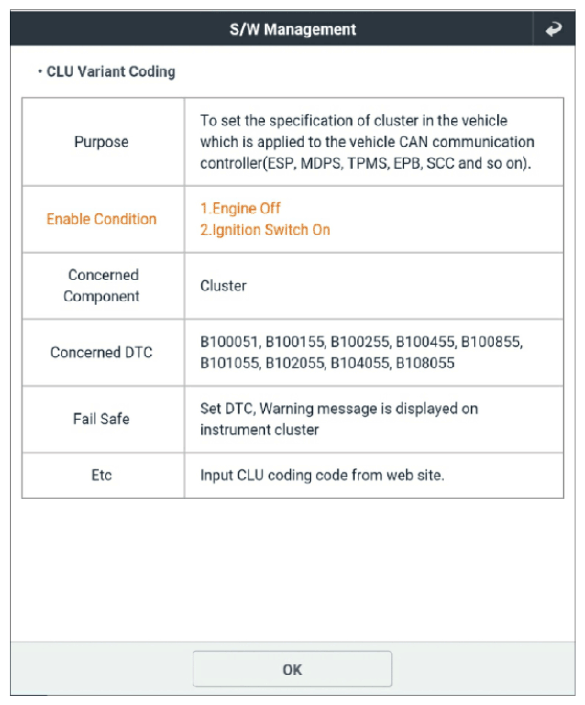

G12852918Courtesy of KIA MOTORS AMERICA, INC.

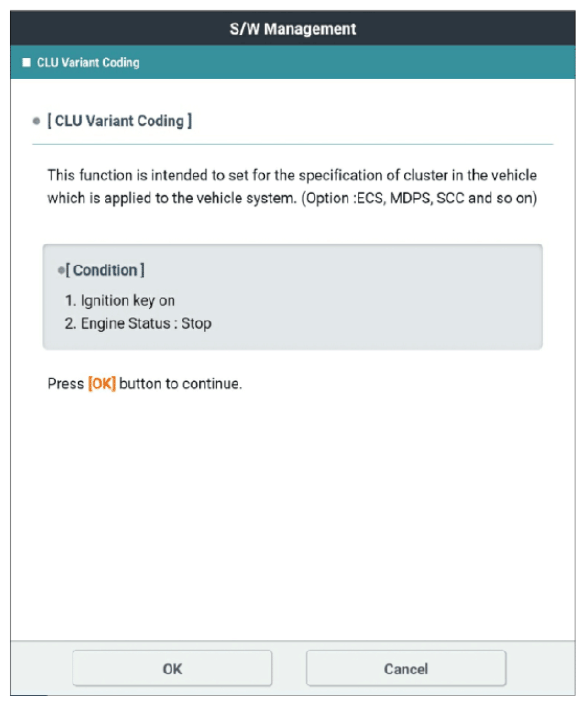

G12852919Courtesy of KIA MOTORS AMERICA, INC.

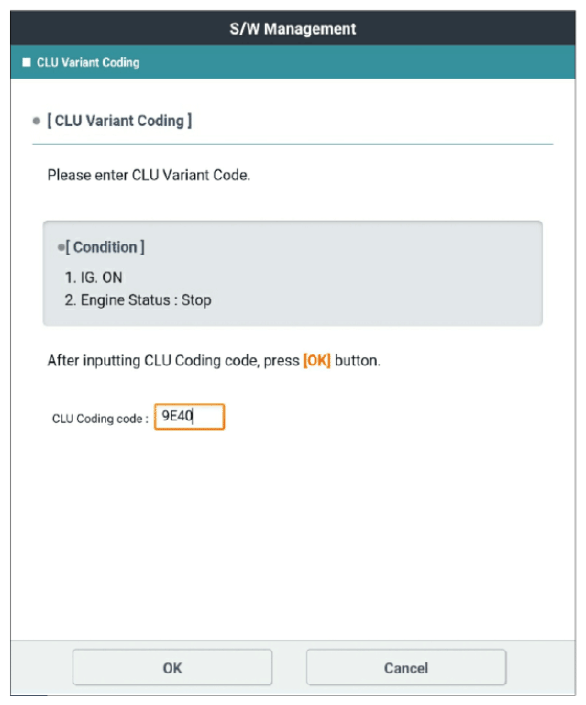

G12852920Courtesy of KIA MOTORS AMERICA, INC.

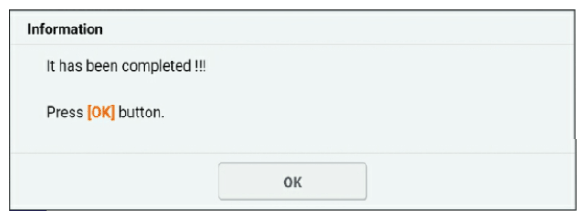

G12852921Courtesy of KIA MOTORS AMERICA, INC.

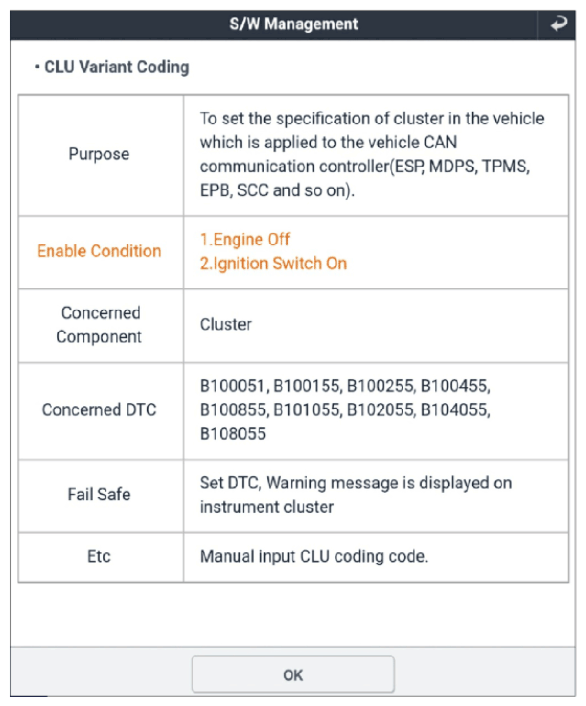

G12852922Courtesy of KIA MOTORS AMERICA, INC.

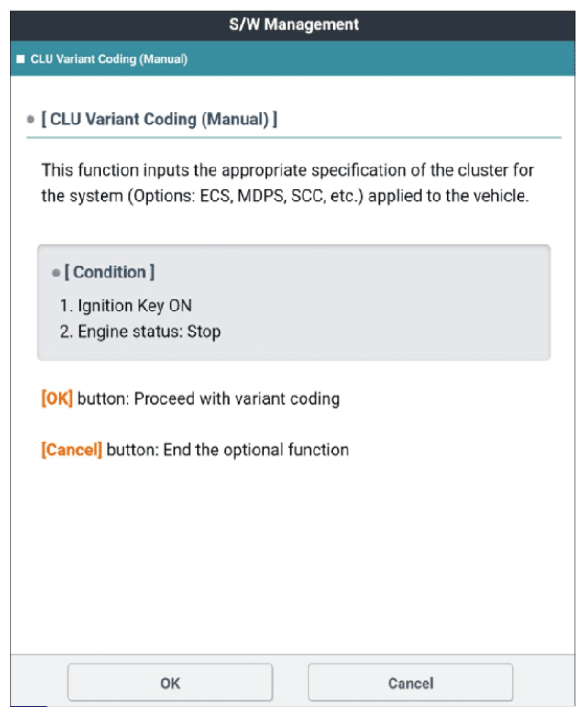

G12852923Courtesy of KIA MOTORS AMERICA, INC.

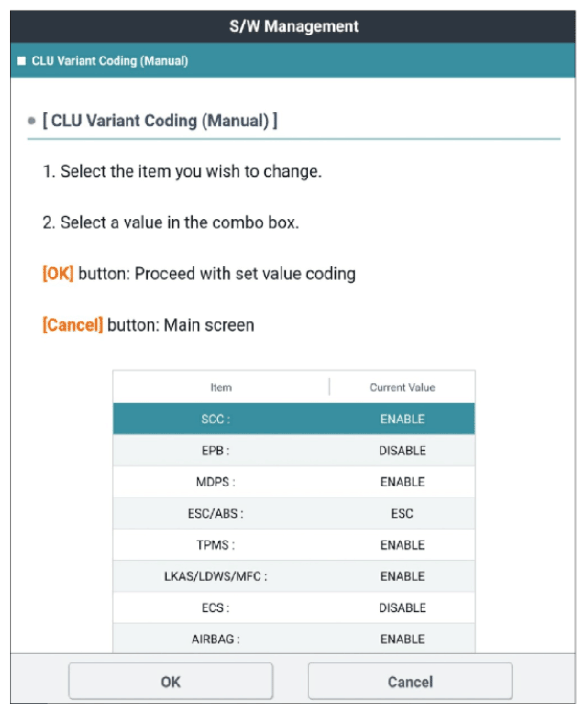

G12852924Courtesy of KIA MOTORS AMERICA, INC.

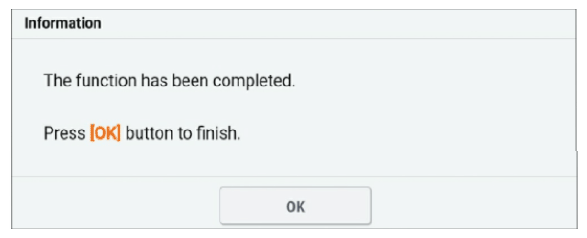

G12852925Courtesy of KIA MOTORS AMERICA, INC.
