Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below.

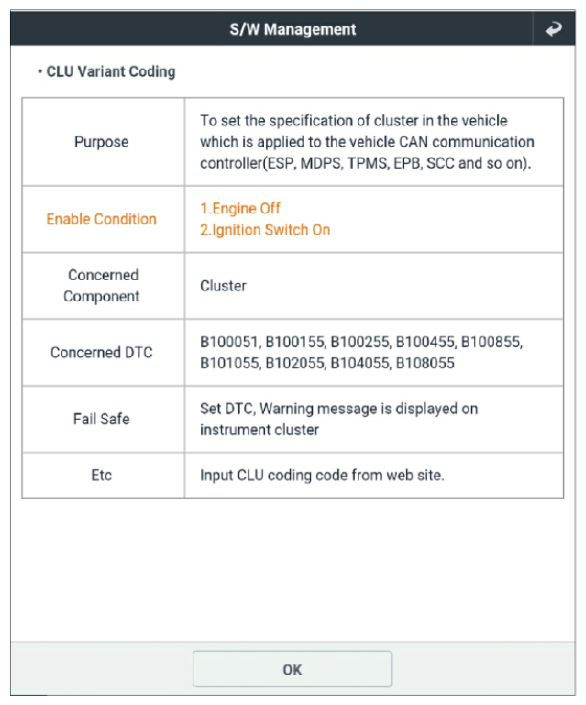

G12853036Courtesy of KIA MOTORS AMERICA, INC.

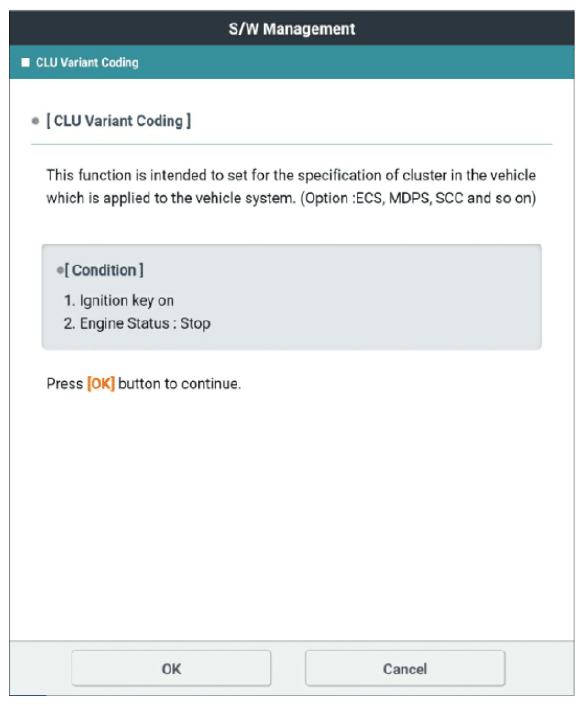

G12853037Courtesy of KIA MOTORS AMERICA, INC.

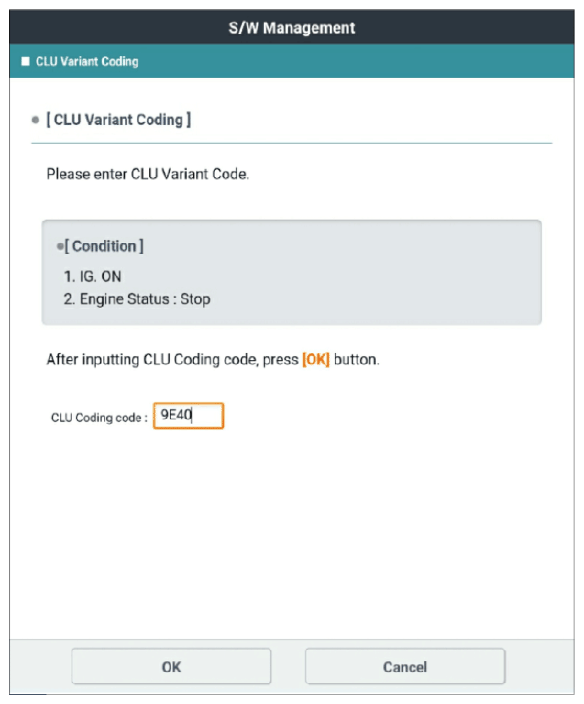

G12853038Courtesy of KIA MOTORS AMERICA, INC.

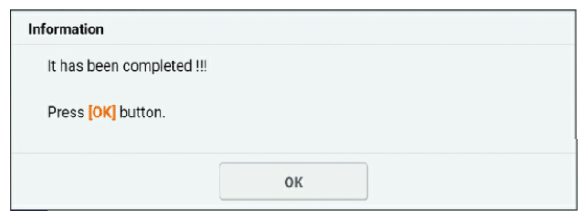

G12853039Courtesy of KIA MOTORS AMERICA, INC.

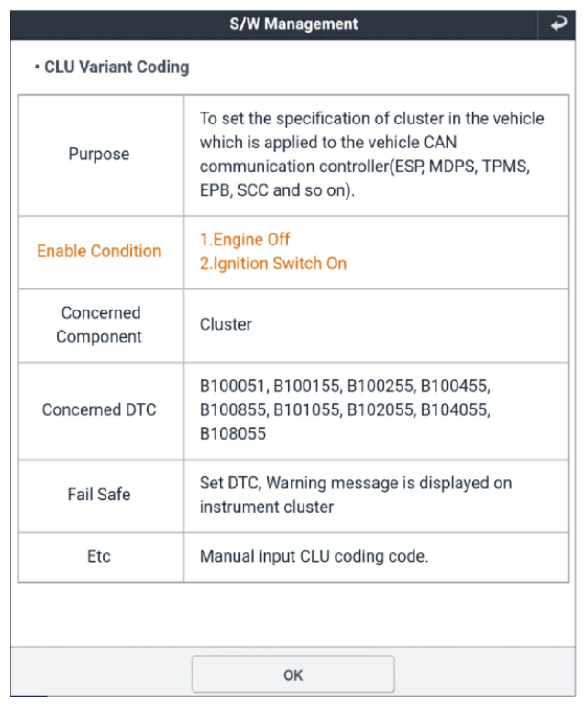

G12853040Courtesy of KIA MOTORS AMERICA, INC.

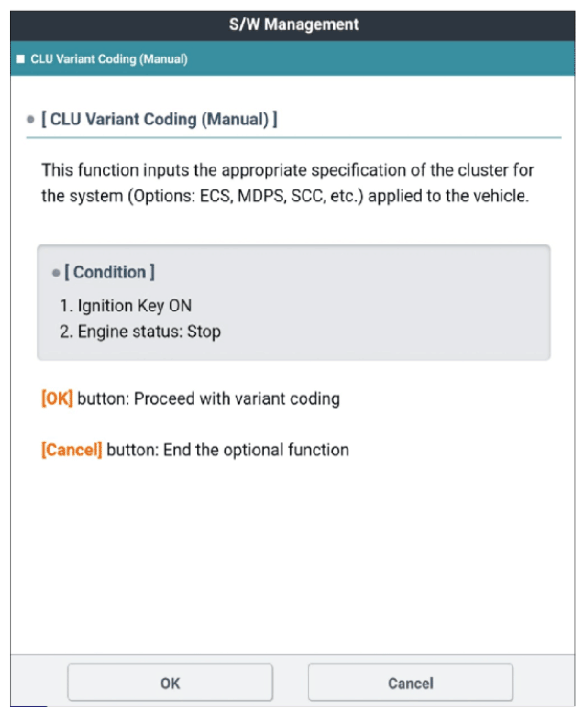

G12853041Courtesy of KIA MOTORS AMERICA, INC.

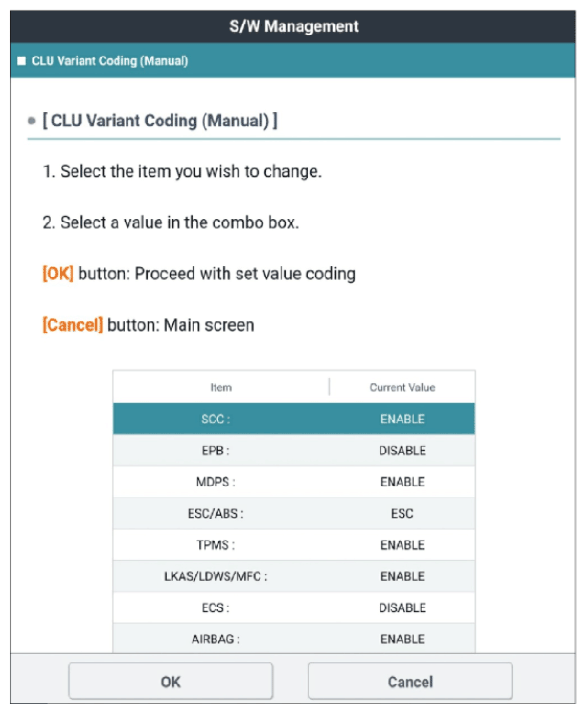

G12853042Courtesy of KIA MOTORS AMERICA, INC.

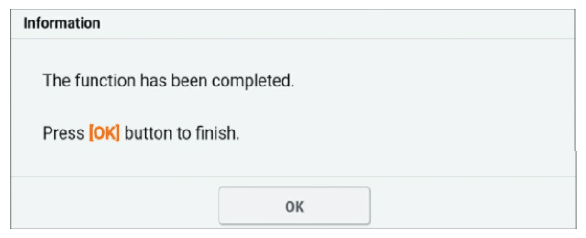

G12853043Courtesy of KIA MOTORS AMERICA, INC.
