Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below.

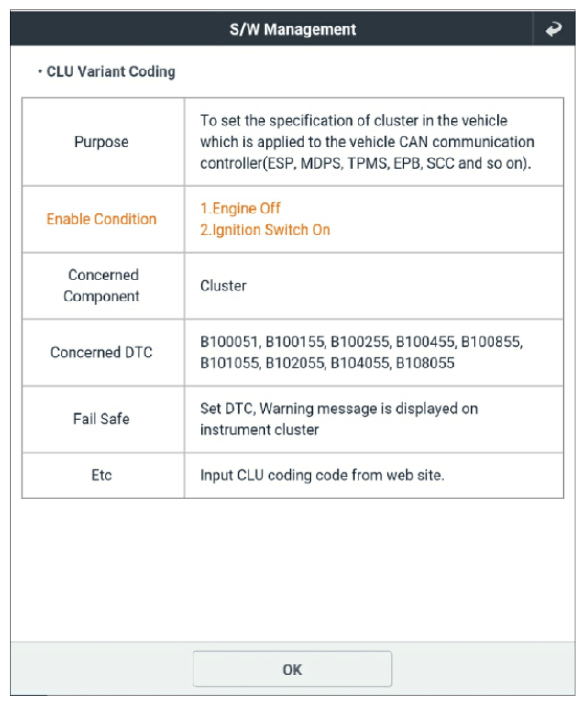

G12853056Courtesy of KIA MOTORS AMERICA, INC.

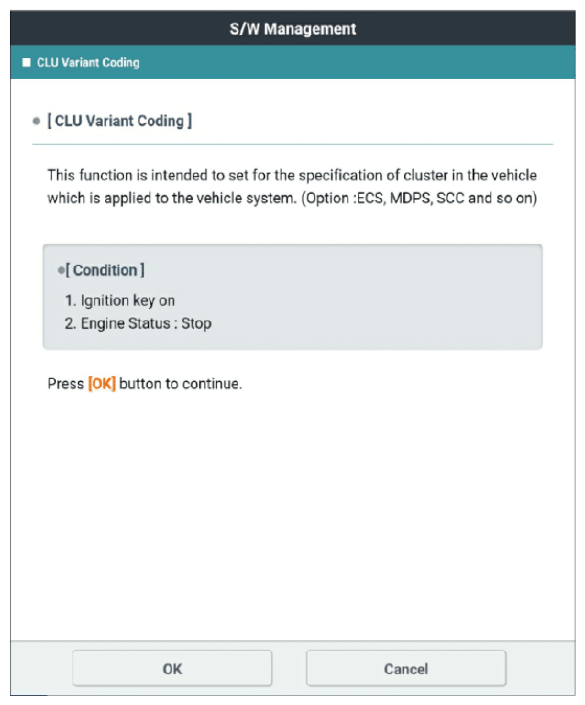

G12853057Courtesy of KIA MOTORS AMERICA, INC.

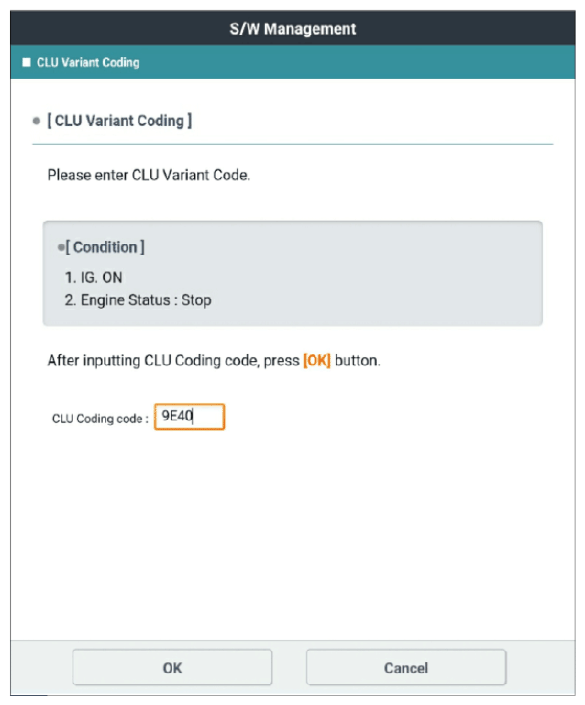

G12853058Courtesy of KIA MOTORS AMERICA, INC.
G12853059Courtesy of KIA MOTORS AMERICA, INC.

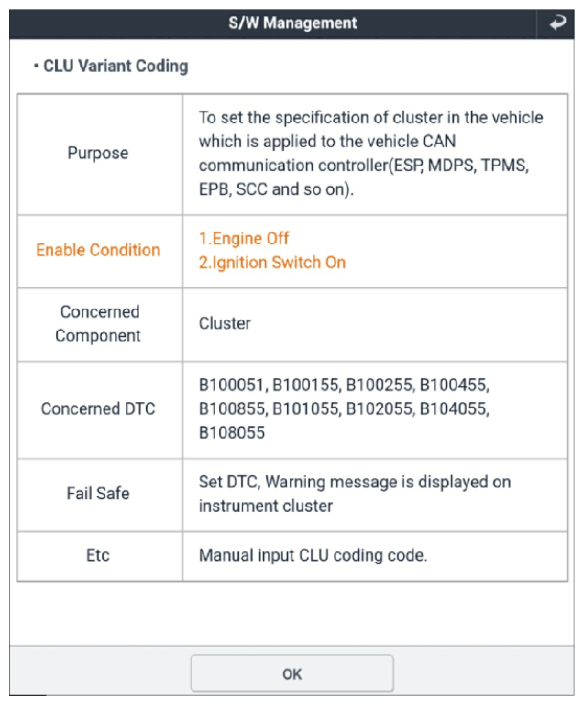

G12853060Courtesy of KIA MOTORS AMERICA, INC.

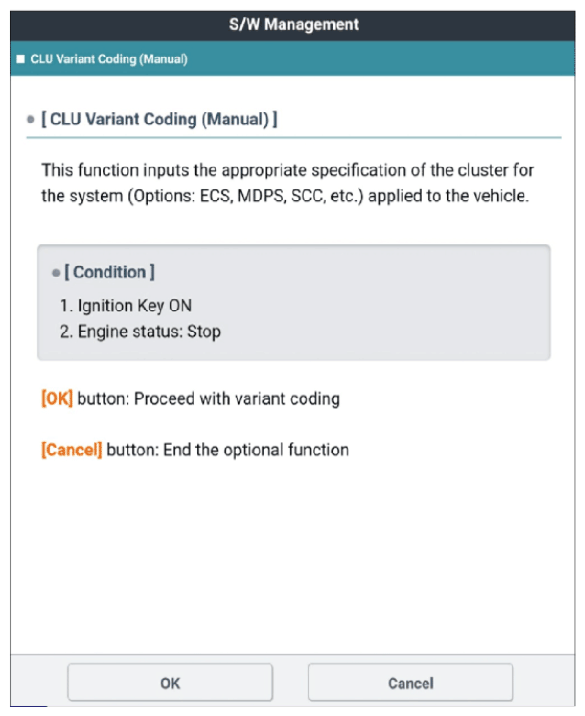

G12853061Courtesy of KIA MOTORS AMERICA, INC.

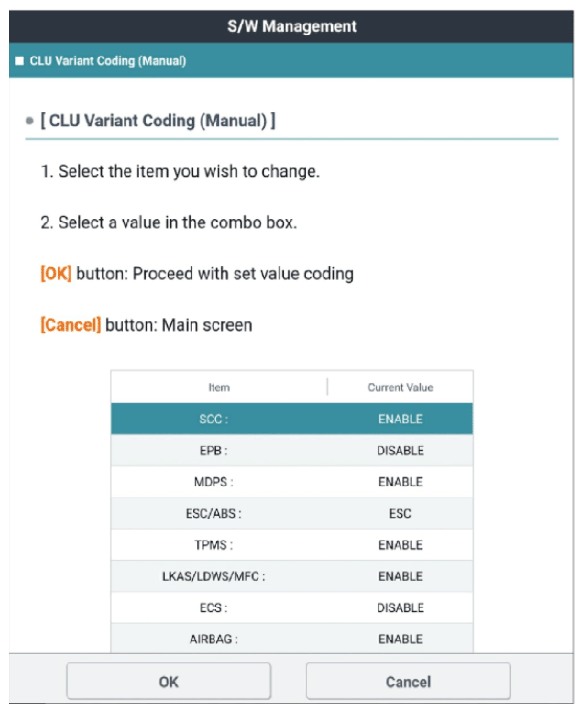

G12853062Courtesy of KIA MOTORS AMERICA, INC.

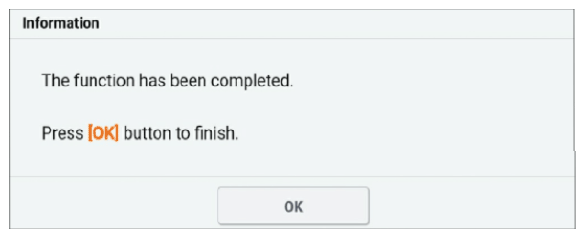

G12853063Courtesy of KIA MOTORS AMERICA, INC.
