Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below.

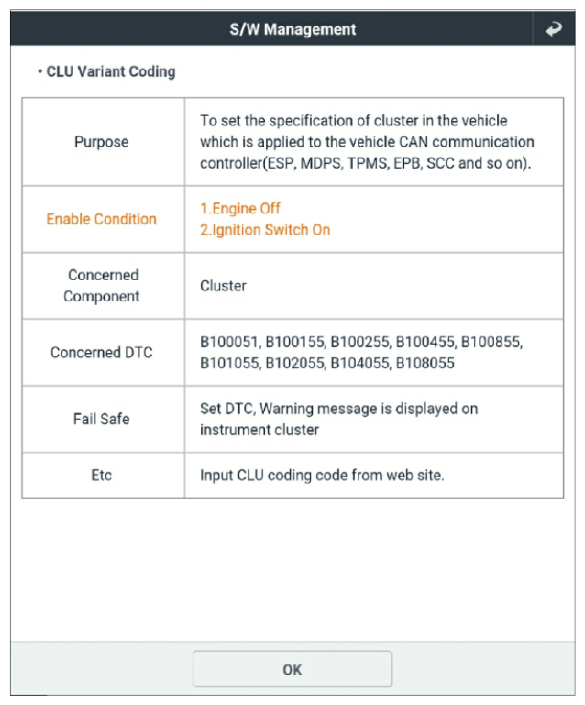

G12853066Courtesy of KIA MOTORS AMERICA, INC.

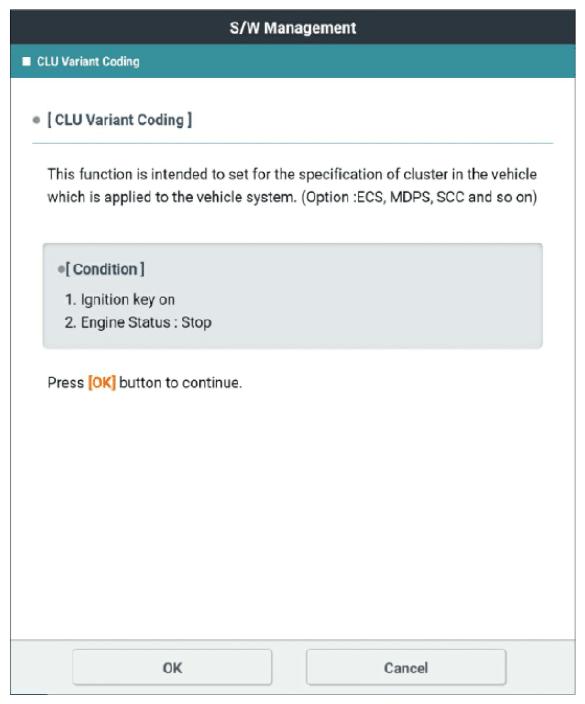

G12853067Courtesy of KIA MOTORS AMERICA, INC.

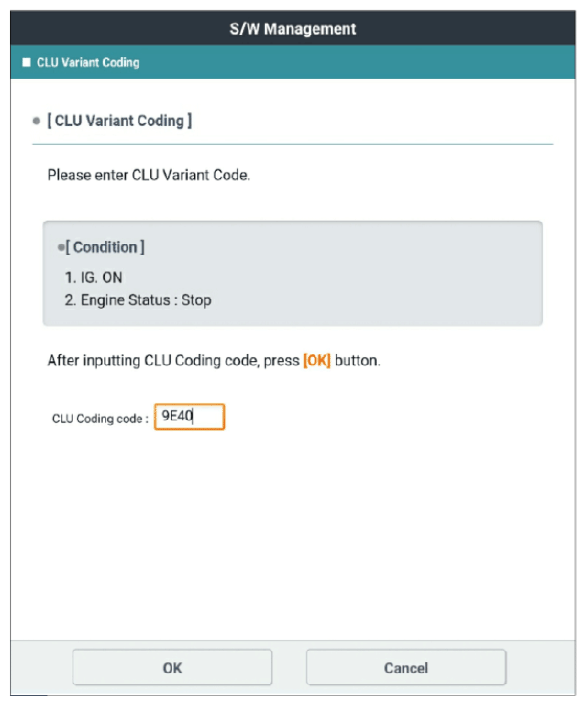

G12853068Courtesy of KIA MOTORS AMERICA, INC.

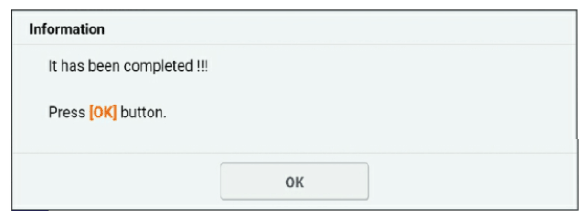

G12853069Courtesy of KIA MOTORS AMERICA, INC.

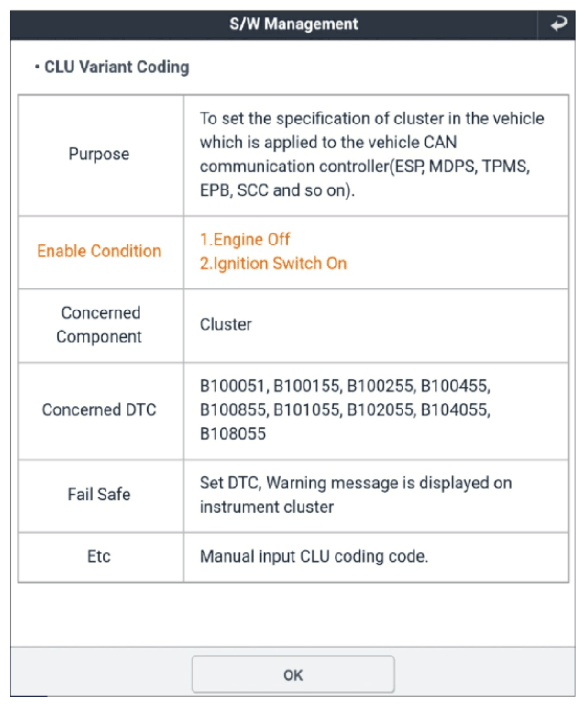

G12853070Courtesy of KIA MOTORS AMERICA, INC.

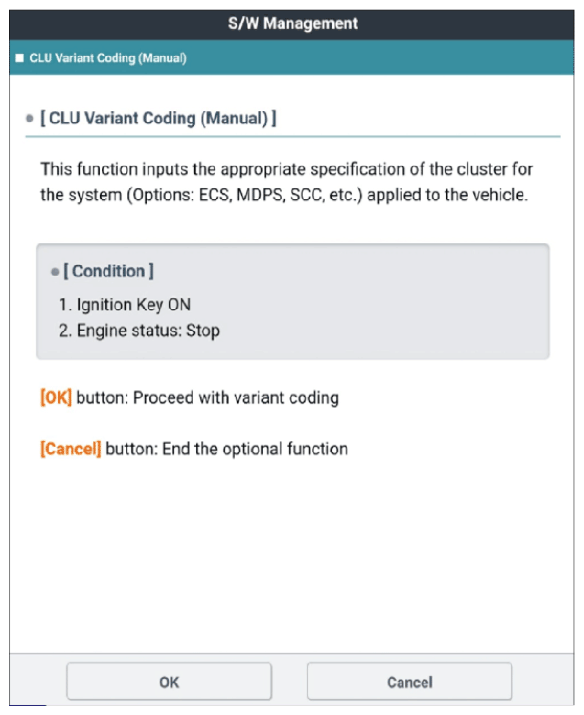

G12853071Courtesy of KIA MOTORS AMERICA, INC.

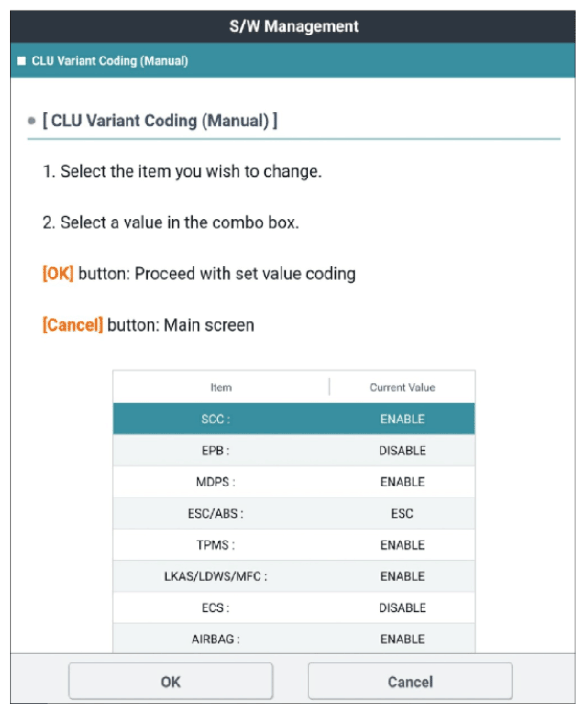

G12853072Courtesy of KIA MOTORS AMERICA, INC.

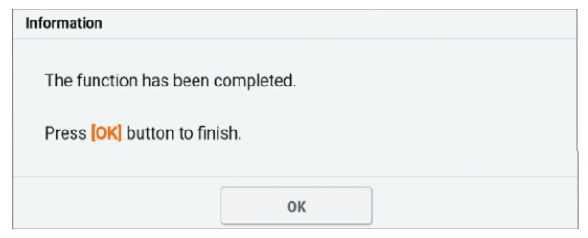

G12853073Courtesy of KIA MOTORS AMERICA, INC.
