Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below.
G12853116Courtesy of KIA MOTORS AMERICA, INC.
G12853117Courtesy of KIA MOTORS AMERICA, INC.

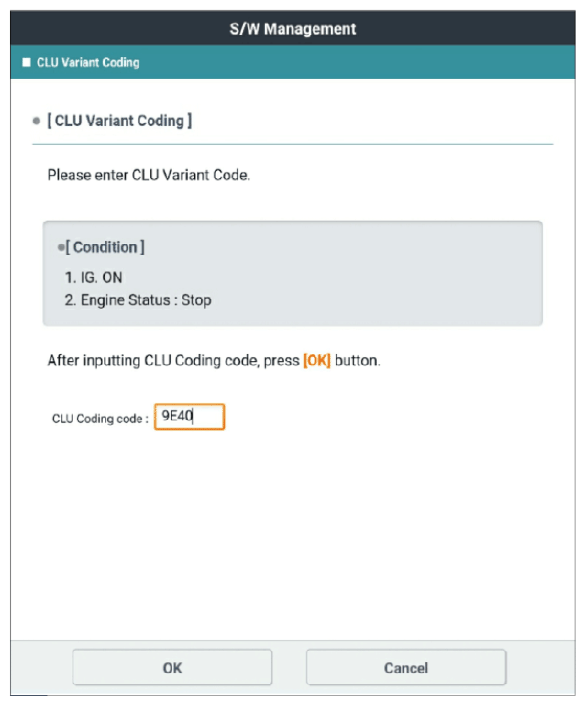

G12853118Courtesy of KIA MOTORS AMERICA, INC.

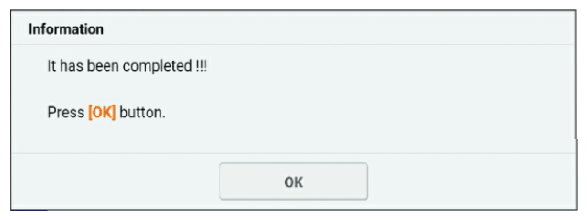

G12853119Courtesy of KIA MOTORS AMERICA, INC.

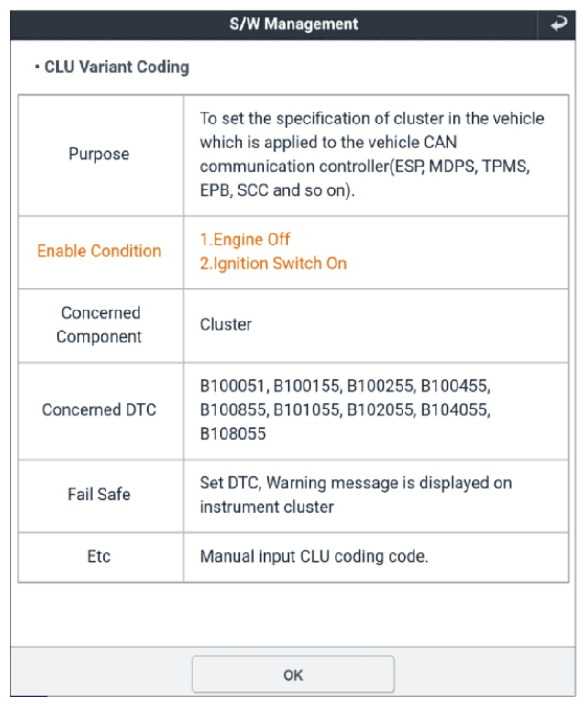

G12853120Courtesy of KIA MOTORS AMERICA, INC.

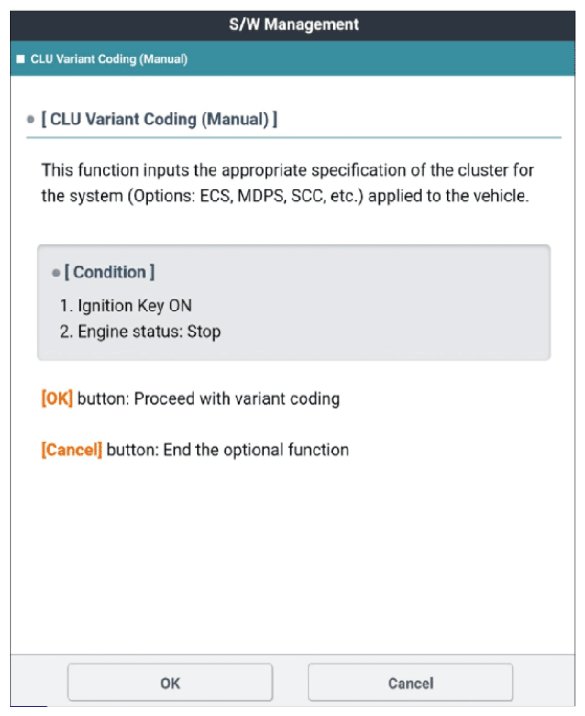

G12853121Courtesy of KIA MOTORS AMERICA, INC.

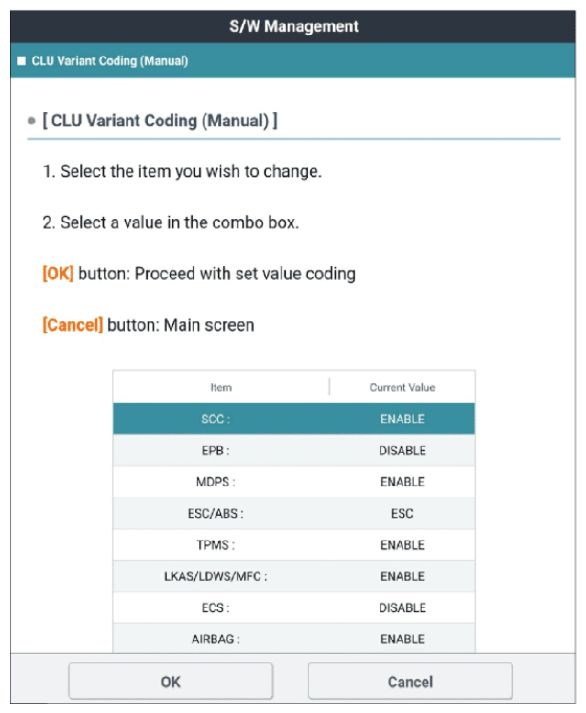

G12853122Courtesy of KIA MOTORS AMERICA, INC.

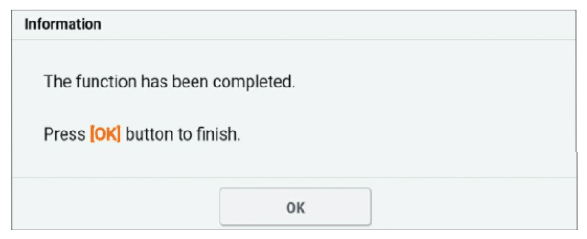

G12853123Courtesy of KIA MOTORS AMERICA, INC.
