Vehicle S/W Management: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON" and engine "OFF".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 4

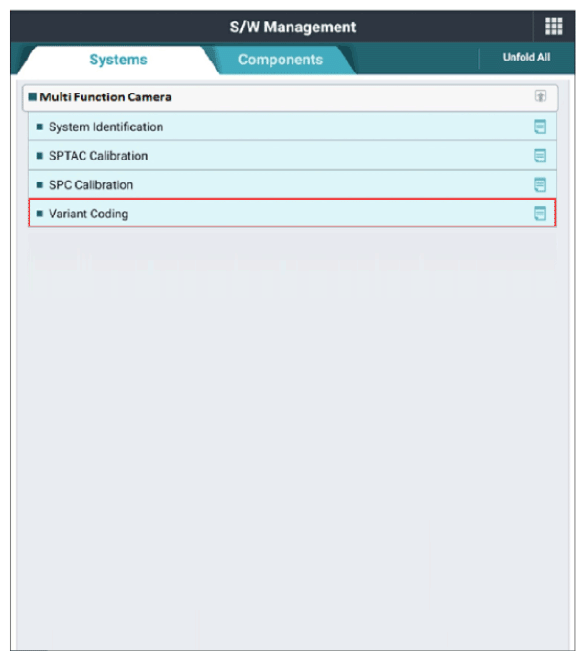

G12856965Courtesy of KIA MOTORS AMERICA, INC.

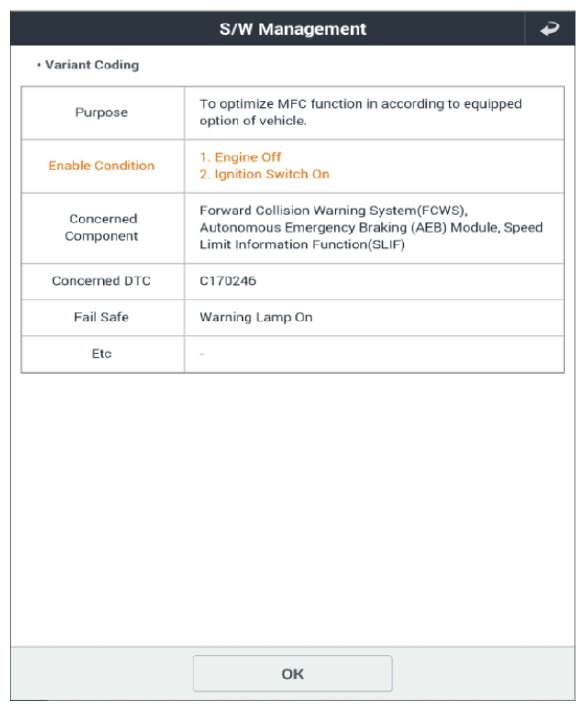

G12856966Courtesy of KIA MOTORS AMERICA, INC.

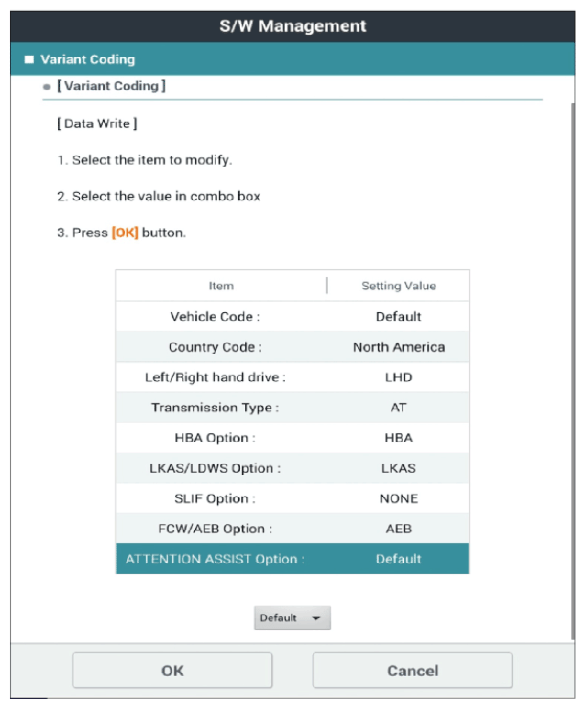

G12856967Courtesy of KIA MOTORS AMERICA, INC.

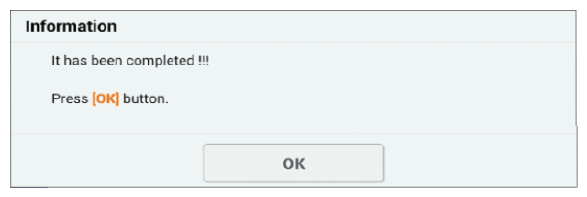

G12856968Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON" and engine "OFF".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 9
