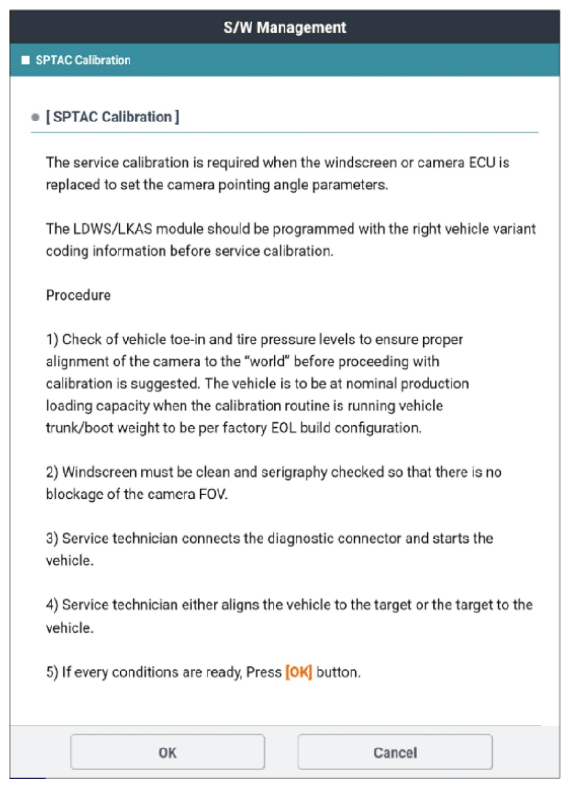

Calibration procedure

  1. Check for vehicle alignment and tire pressure for accurate camera calibration.
  2. Windshield must be clean and free of any dirt or object.
  3. Calibration target installation procedure as follows:

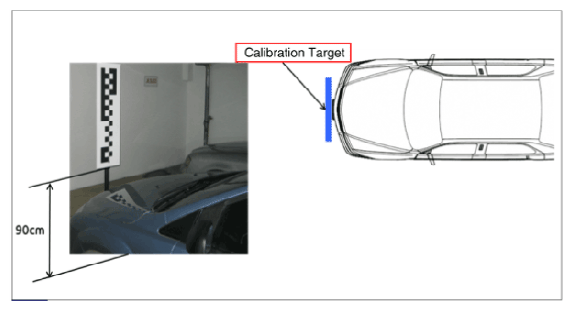

    1. Set the calibration target height approx. 90cm ± 2cm from the ground and align the center of target with center line of vehicle.
    2. Center of target and center of vehicle should be within ±5cm.
    3. Position the calibration target approx. 0cm from the center of vehicle front wheel. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1°. (Close range target setting)
    4. Perform Distance target setting after performing close target setting.

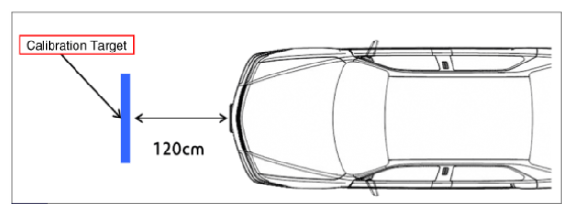

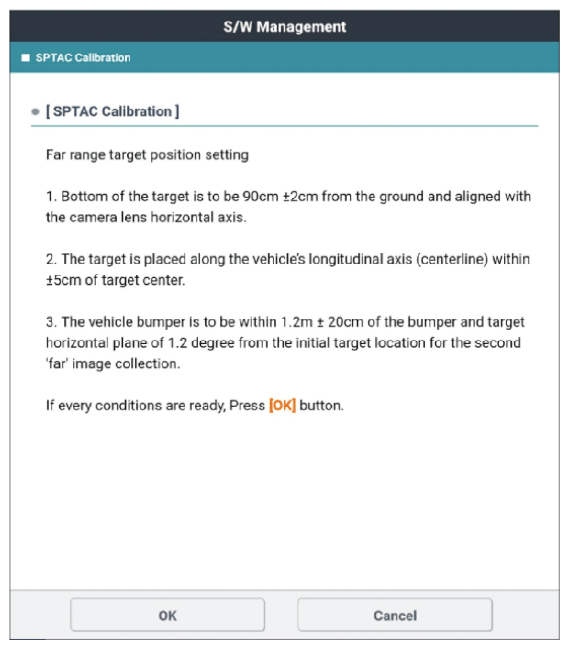

    5. Position the calibration target 1.2 m from the front bumper. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1°. (Far range target setting)
G12857249Courtesy of KIA MOTORS AMERICA, INC.
G12857250Courtesy of KIA MOTORS AMERICA, INC.
G12857251Courtesy of KIA MOTORS AMERICA, INC.
G12857252Courtesy of KIA MOTORS AMERICA, INC.

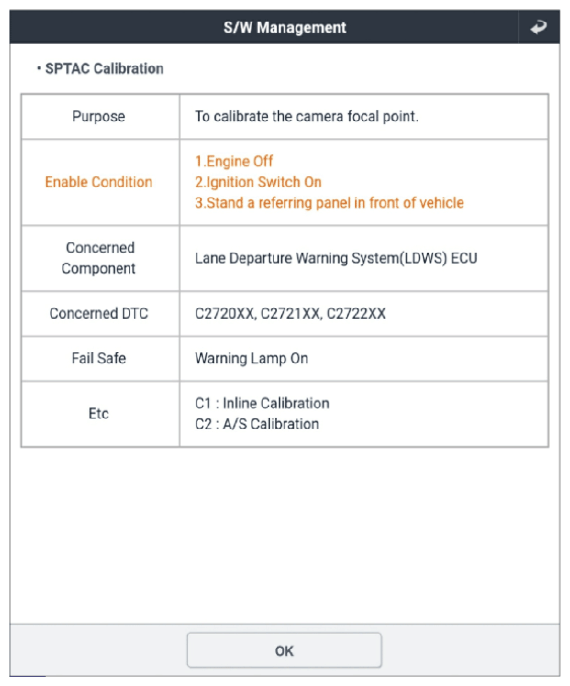

G12857253Courtesy of KIA MOTORS AMERICA, INC.
G12857254Courtesy of KIA MOTORS AMERICA, INC.

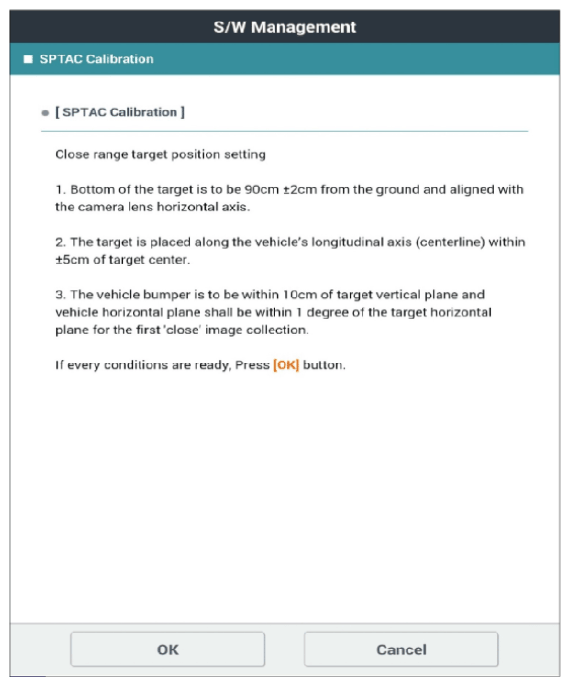

G12857255Courtesy of KIA MOTORS AMERICA, INC.
G12857256Courtesy of KIA MOTORS AMERICA, INC.
G12857257Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON" and engine "OFF".
  1. Connect KDS to Data Link Connector (DLC).

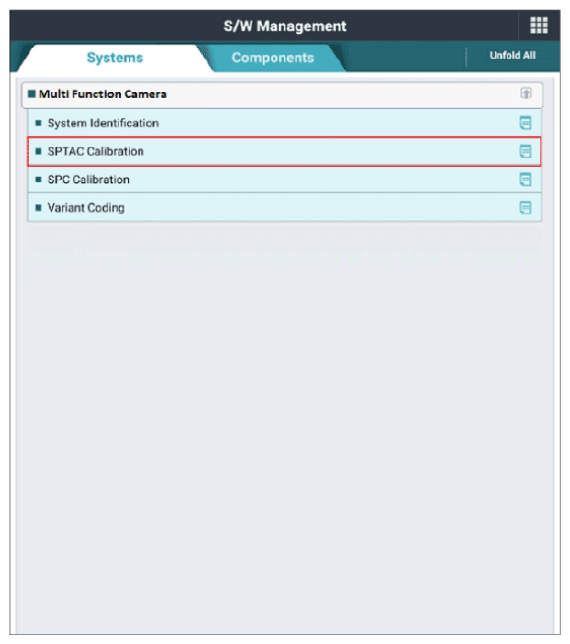

  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

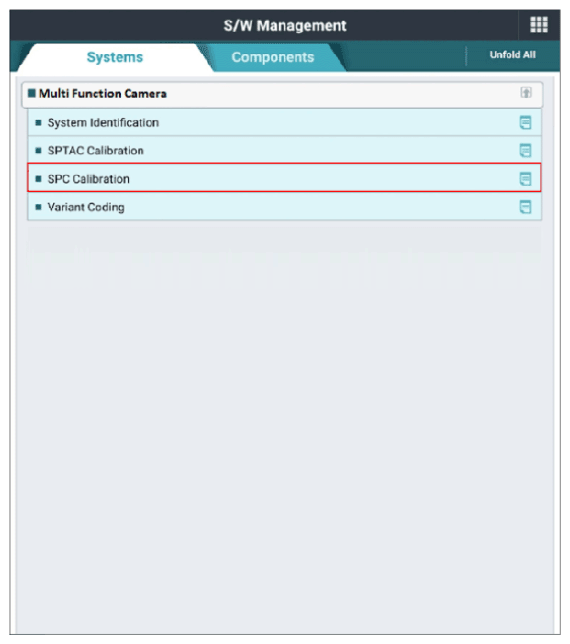

G12857258Courtesy of KIA MOTORS AMERICA, INC.

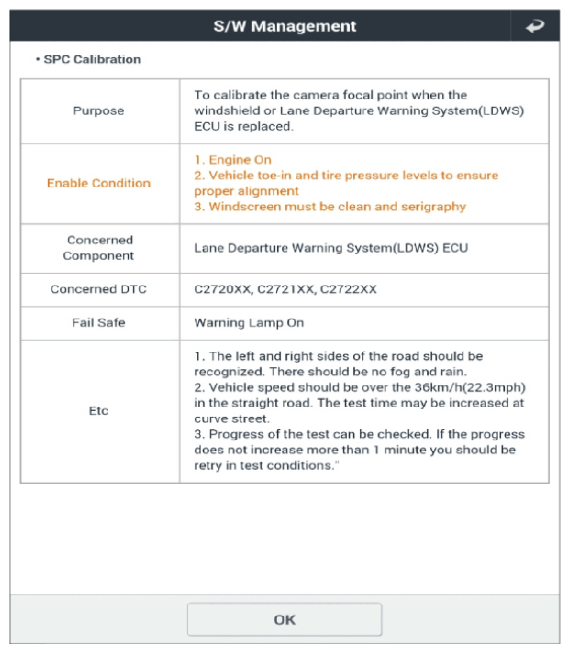

G12857259Courtesy of KIA MOTORS AMERICA, INC.

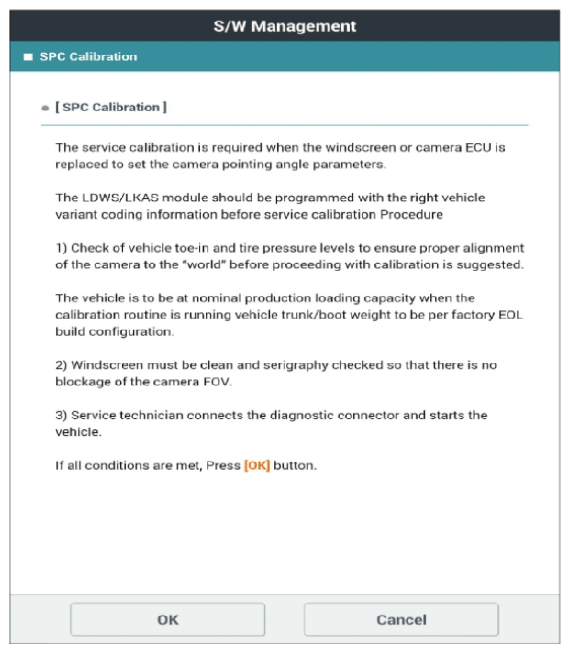

G12857260Courtesy of KIA MOTORS AMERICA, INC.

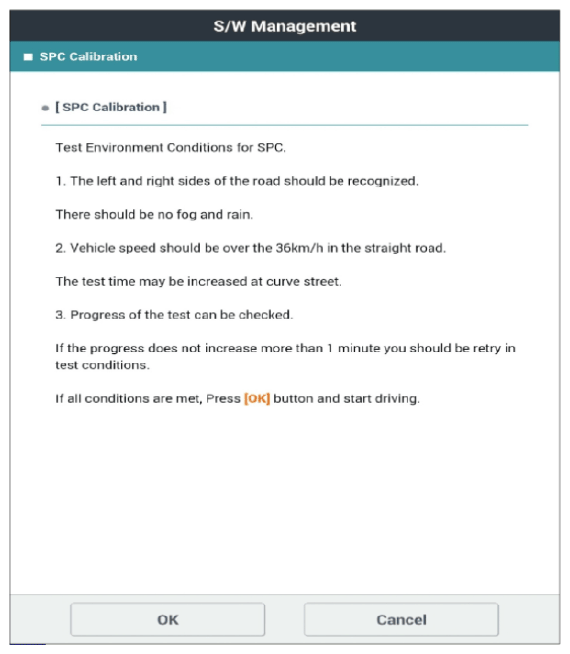

G12857261Courtesy of KIA MOTORS AMERICA, INC.
G12857262Courtesy of KIA MOTORS AMERICA, INC.
