Monitor KDS Data
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
| 1. Ignition "ON", engine "ON". | 1. Connect KDS to Data Link Connector (DLC). 2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS. |

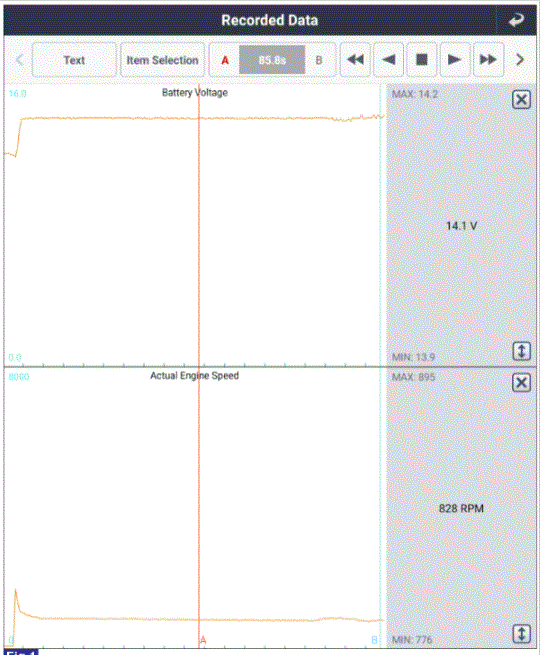

Fig.1 |
Good
• Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification Of Repair " procedure.
No Good
• Go to "Wiring Inspection " procedure.
