Component Inspection
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

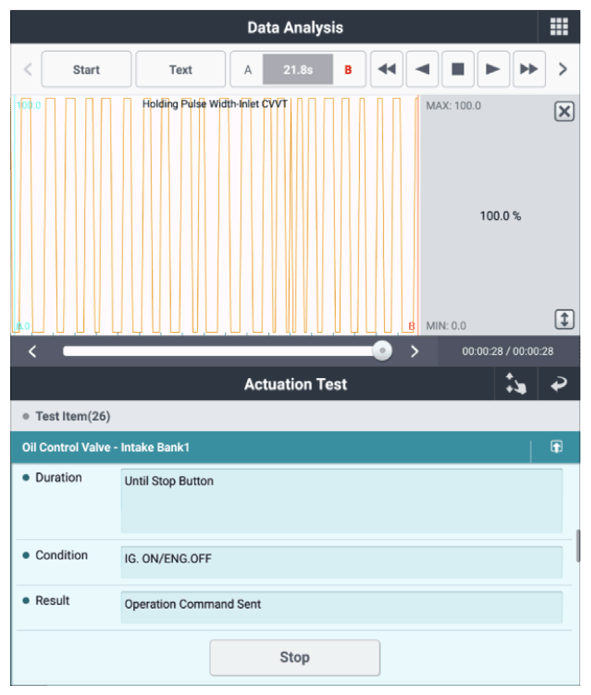

Figure below. |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "INSPECT OCV - INTAKE " procedure.
INSPECT OCV SPECIFICATION - INTAKE
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
OCV - intake (component side) | 2 (power) | OCV - intake (component side) | 1 (control) | Approx. 9.4 to 10.4Ω |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the OCV - intake and go to "VERIFICATION OF REPAIR " procedure.
