Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF".
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUP & Input (TCU Replacement)" and go to "VERIFICATION OF REPAIR " procedure.
 Figures

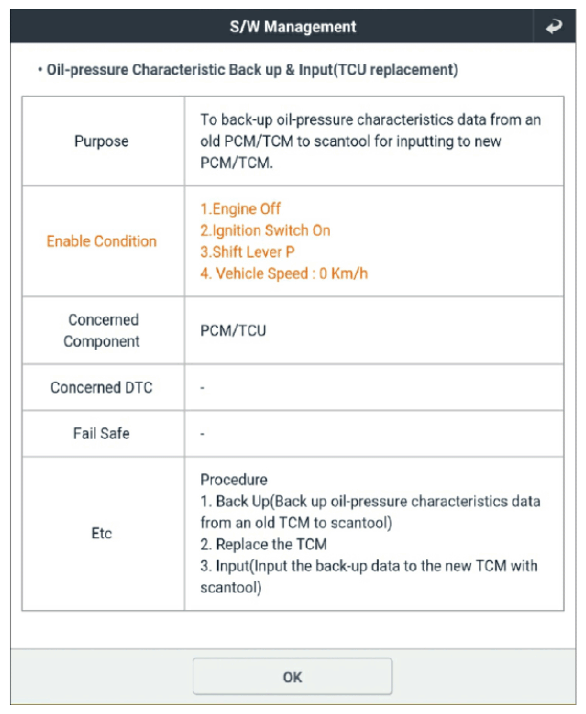

G12865125Courtesy of KIA MOTORS AMERICA, INC.
G12865126Courtesy of KIA MOTORS AMERICA, INC.
G12865127Courtesy of KIA MOTORS AMERICA, INC.

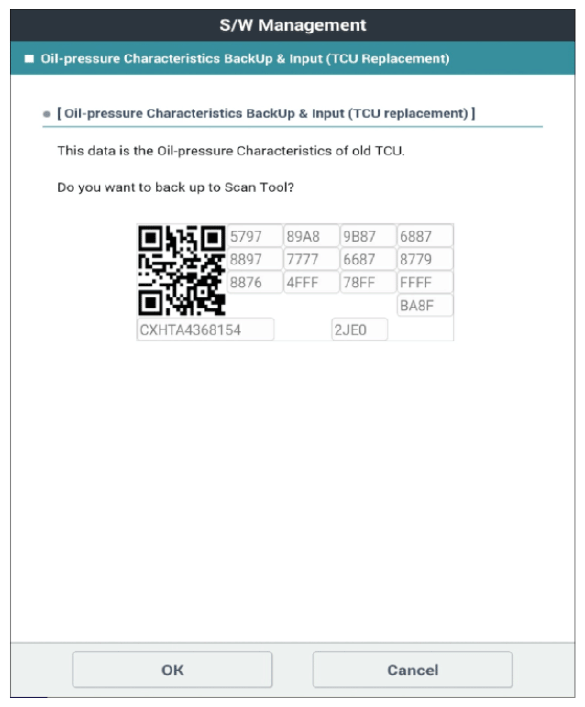

G12865128Courtesy of KIA MOTORS AMERICA, INC.

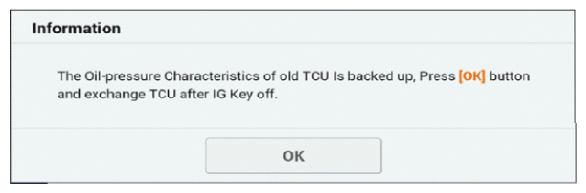

G12865129Courtesy of KIA MOTORS AMERICA, INC.

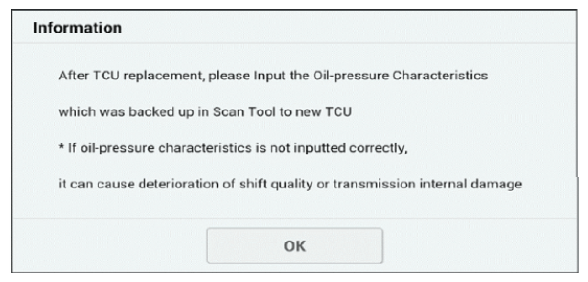

G12865130Courtesy of KIA MOTORS AMERICA, INC.

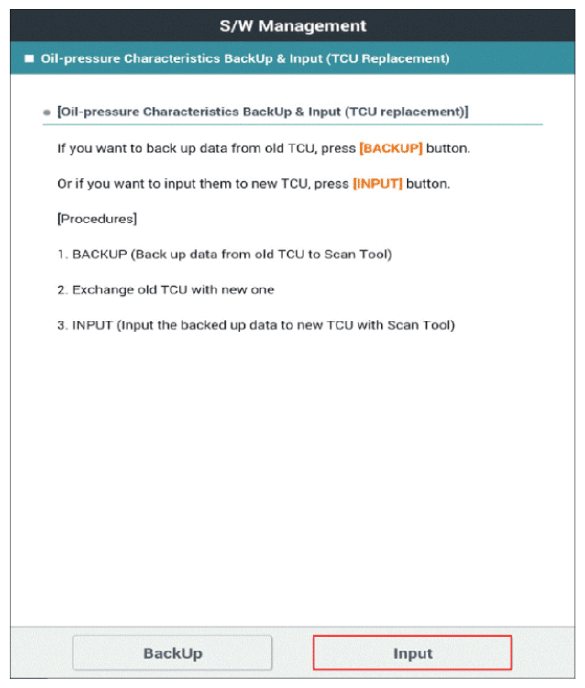

G12865131Courtesy of KIA MOTORS AMERICA, INC.

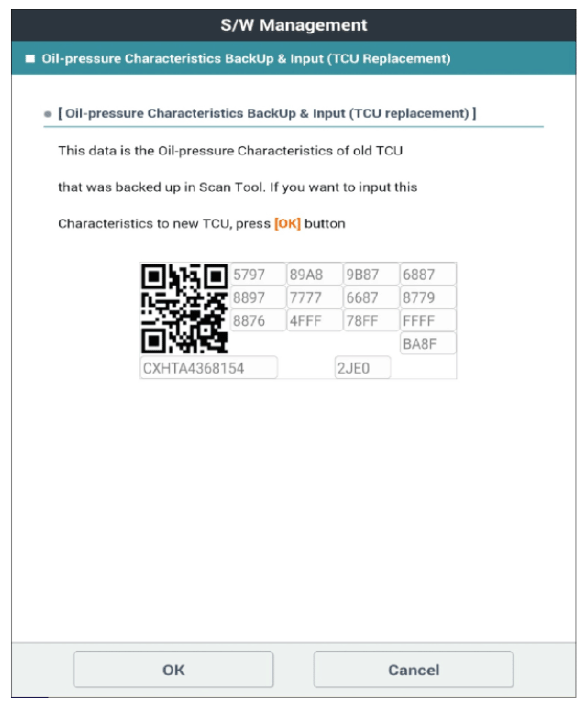

G12865132Courtesy of KIA MOTORS AMERICA, INC.

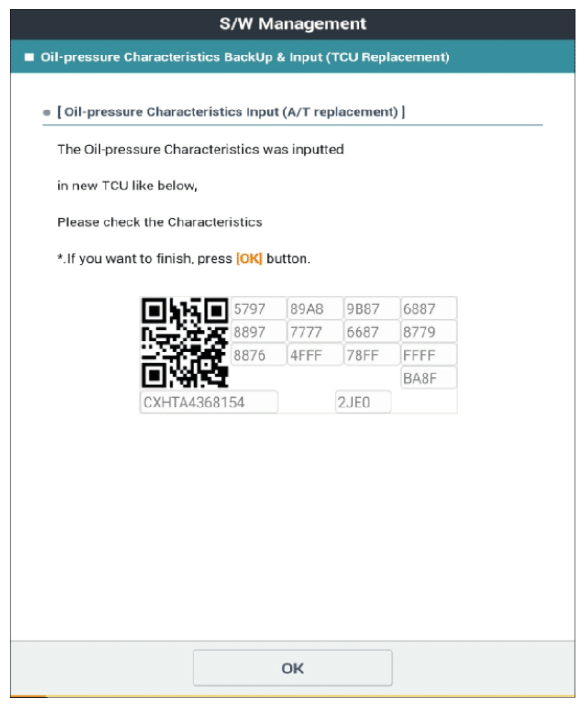

G12865133Courtesy of KIA MOTORS AMERICA, INC.
