Variant Coding
- Switch "OFF" the ignition.
- Connect the KDS to Data Link Connector (DLC).
- Switch "ON" the ignition.
- Select "Vehicle, Model year, Engine, System".

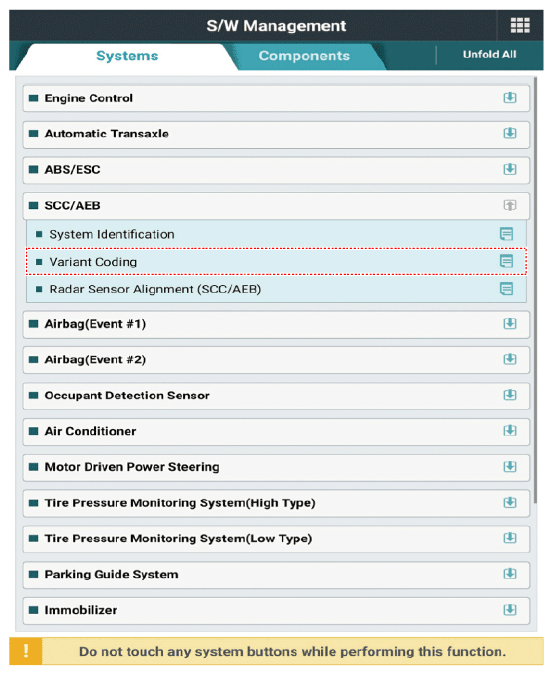

- Select "Vehicle S/W Management".

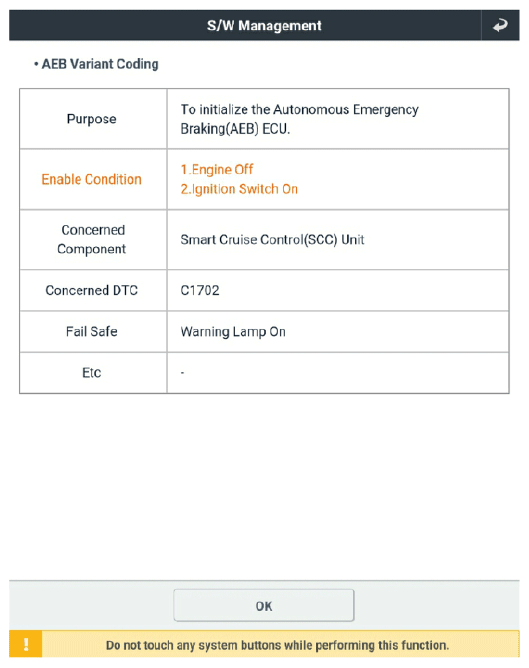

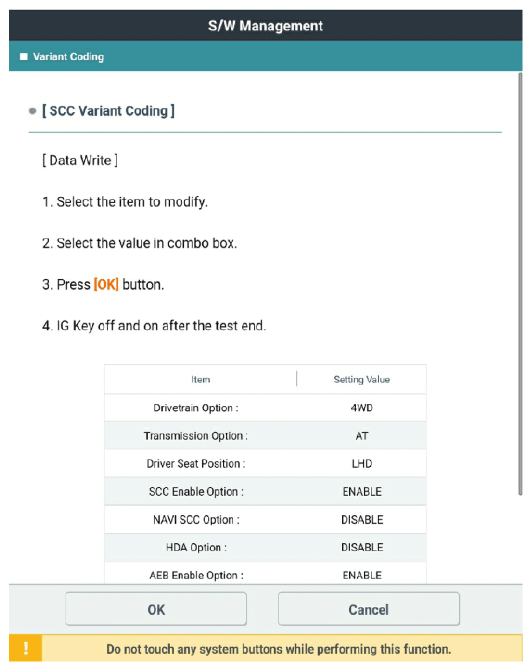

- Perform variant coding.
