Variant Coding

Perform the "VARIANT CODING " by KDS following in the order below.
1. Connect self-diagnosis connector (16pins) located under the driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2. Select the "vehicle model" and "Electronic Stability Program" on KDS vehicle selection screen.

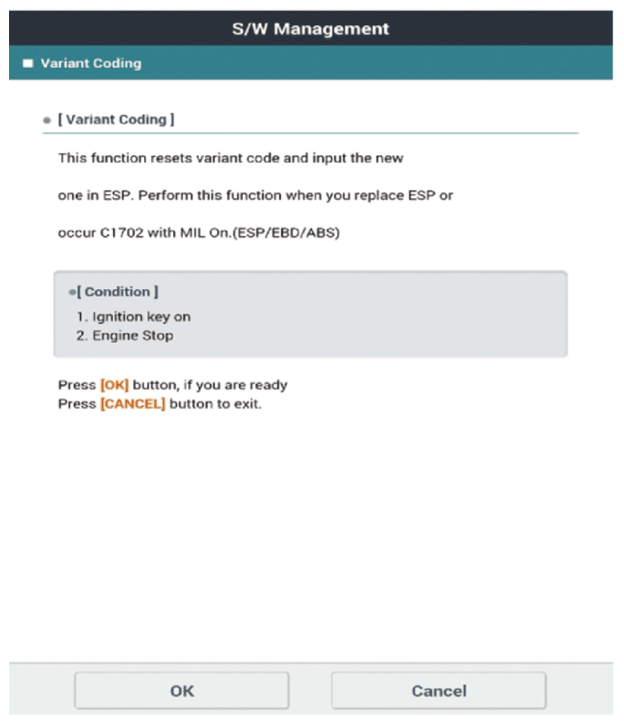

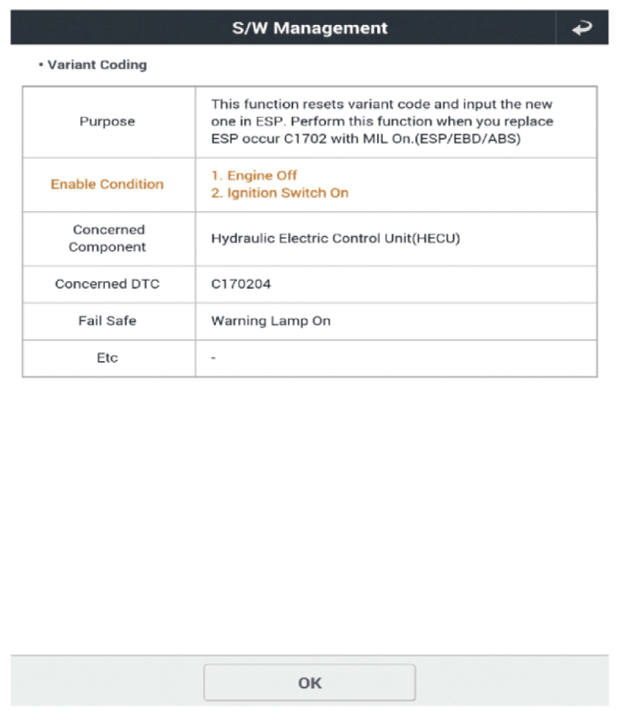

3. Select the "Variant Coding" on KDS screen, then select OK.

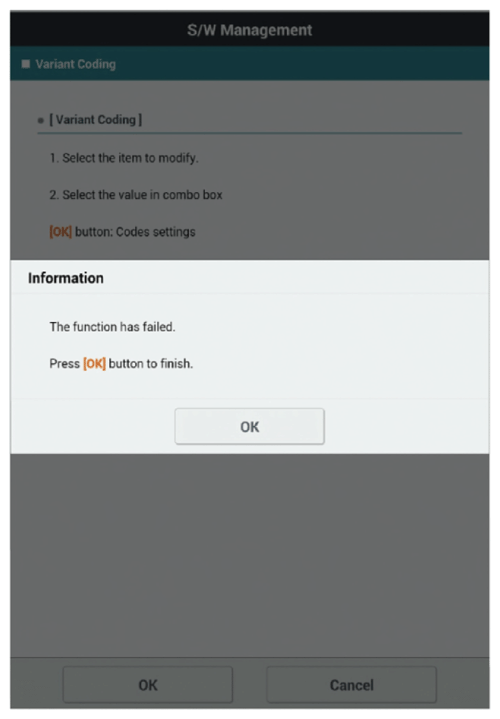

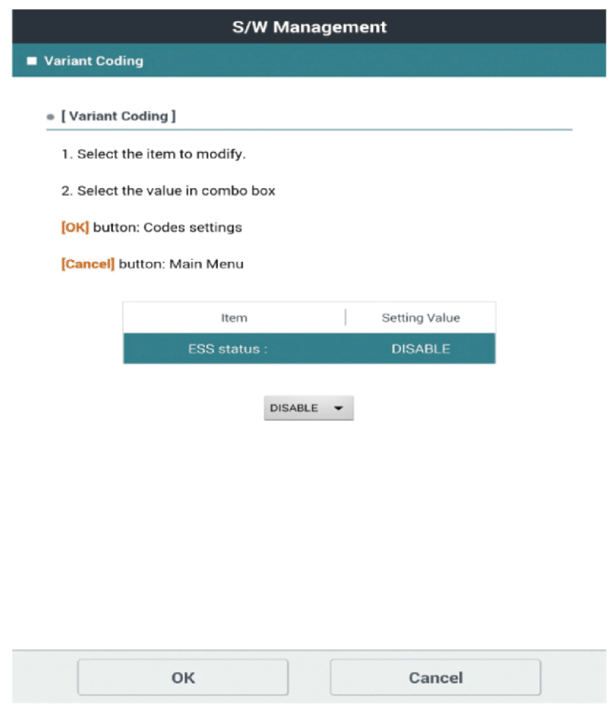

4. Proceed with the test according to the screen instructions.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
