Component Inspection: Notes

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference

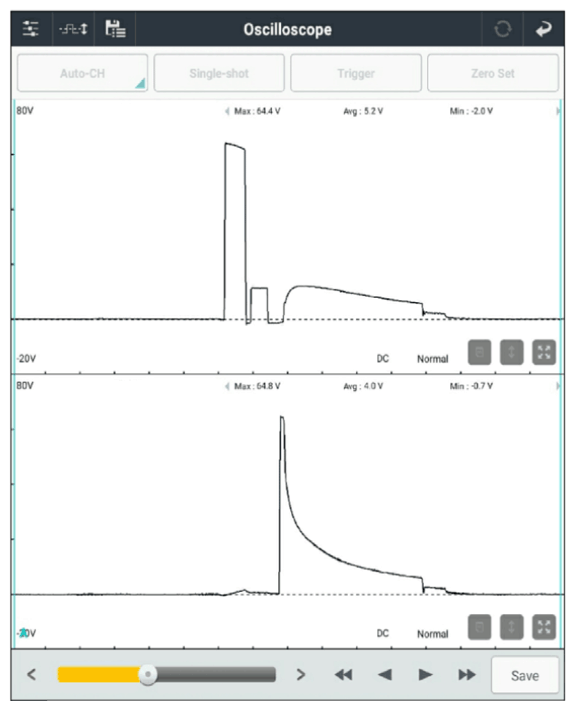

Ignition "ON"., engine "ON".	Injector #2 connector	1 (high)	Chassis ground	-	Figure below
Ignition "ON"., engine "ON".	Injector #2 connector	2 (low)	Chassis ground	-	Figure below

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the Injector #2 and go to "VERIFICATION OF REPAIR " procedure.
